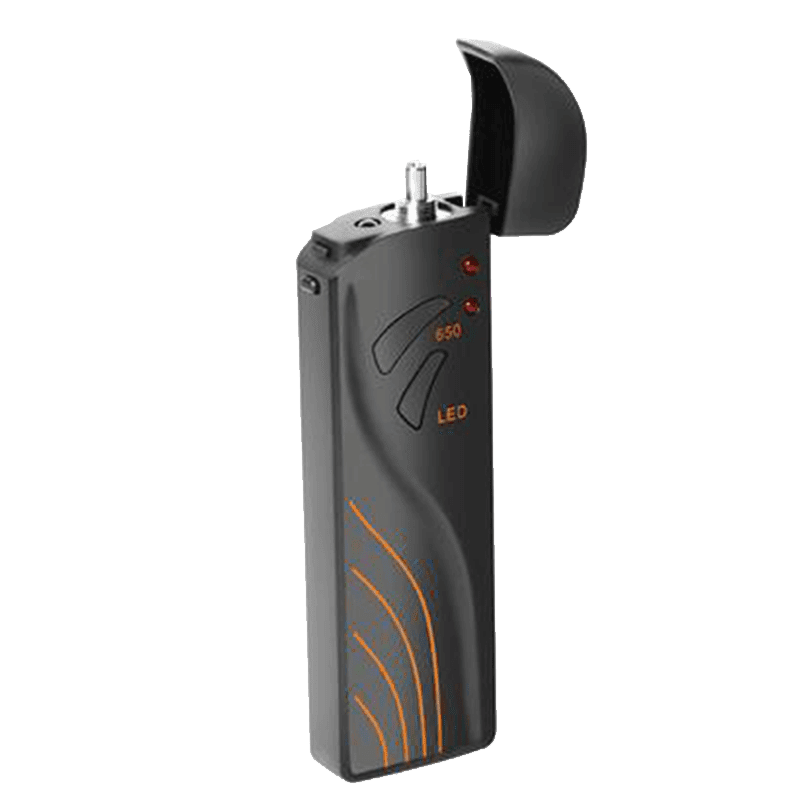

Visual fanlt locator(VFL)-B

Description

Features:



◆2.5mm universal connector, for 1.25mm connectors, FC (Male)-LC (Female)
◆Convertor can be provided on requests.
◆Operates either in CW or Pulsed
◆ Constant output power
◆Lower Battery warning
◆ Long battery life (up to 60 hours)
◆ Crash-proof and dust-proof design for laser head
◆Laser case ground design prevents ESD damage
◆Burning testing to ensure the reliability.
◆Portable and rugged, easy to use





Parameters:



Central Wavelength 650nm±10nm (635nm can be required on request)
Emitter Type FP-LD
Output Power Optional choice for 1mw, 10mw on actual needs
Optical Connector 2.5mm universal connector
For 1.25mm connectors, FC (Male)-LC (Female) convertor
can be optional on customer requests
Operating Model Both CW and Pulse available
Pulse Frequency 2~3Hz
Power Supply 2  AA alkaline batteries
Battery Operating Time 650nm@1mw ≥65hour
650nm@10mw≥15hour
Test with Panasonic LR6 AA ALKALINE battery
Operating Temperature -10~+45 (℃)
Storage Temperature -40~+70 (℃)
