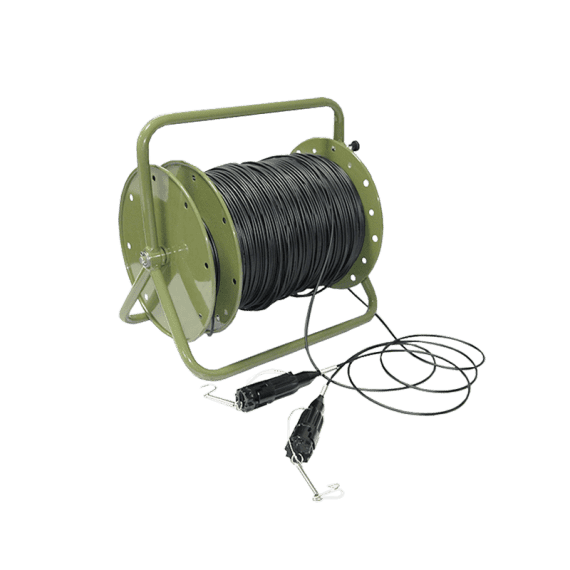

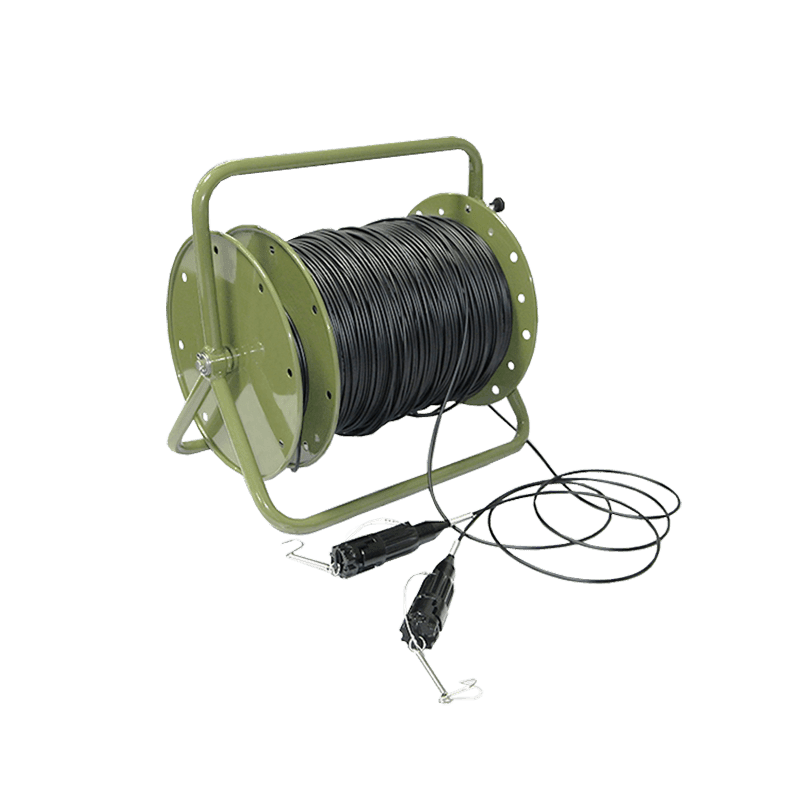

Tactical fiber optical cable reel-C

Description

Application:



Fiber-to-the-Antenna (FTTA)
Automation and industrial cabling.
Naval and ship building, Broadcast.





Feature:



Support Horizontal and Vertical Cabling for All Common LTE/4G/5G Radio Systems
Built-in socket with square or hexagonal flange.
Resist strong pressure and stretching.
Can effectively adapt to harsh porous environment.
Helical Steel Armored Branch Cable for Anti-rodent Protection and Bird-proof.





Parameters:



Specification SM MM
Operating Wavelength(nm) 1310, 1550 850, 1300
Typical Insertion Loss(dB) 0.2 0.15
Max. Insertion Loss(dB) 0.3 0.3
Return Loss(In/Out)(dB) UPC≥50, APC≥60 ≥35
Fiber jacket LSZH or TPU
Cable color black
Storage Temperature(℃) -40 ~  +85
Fiber count 1~24cores
Fiber Diameter (mm) Φ3.0mm~Φ7.0mm
Waterproof Grade IP68
Flame Retardant Grade UL94V-0
cable length 100-500m
Material metal
Fiber cable armored or non-armored cable
