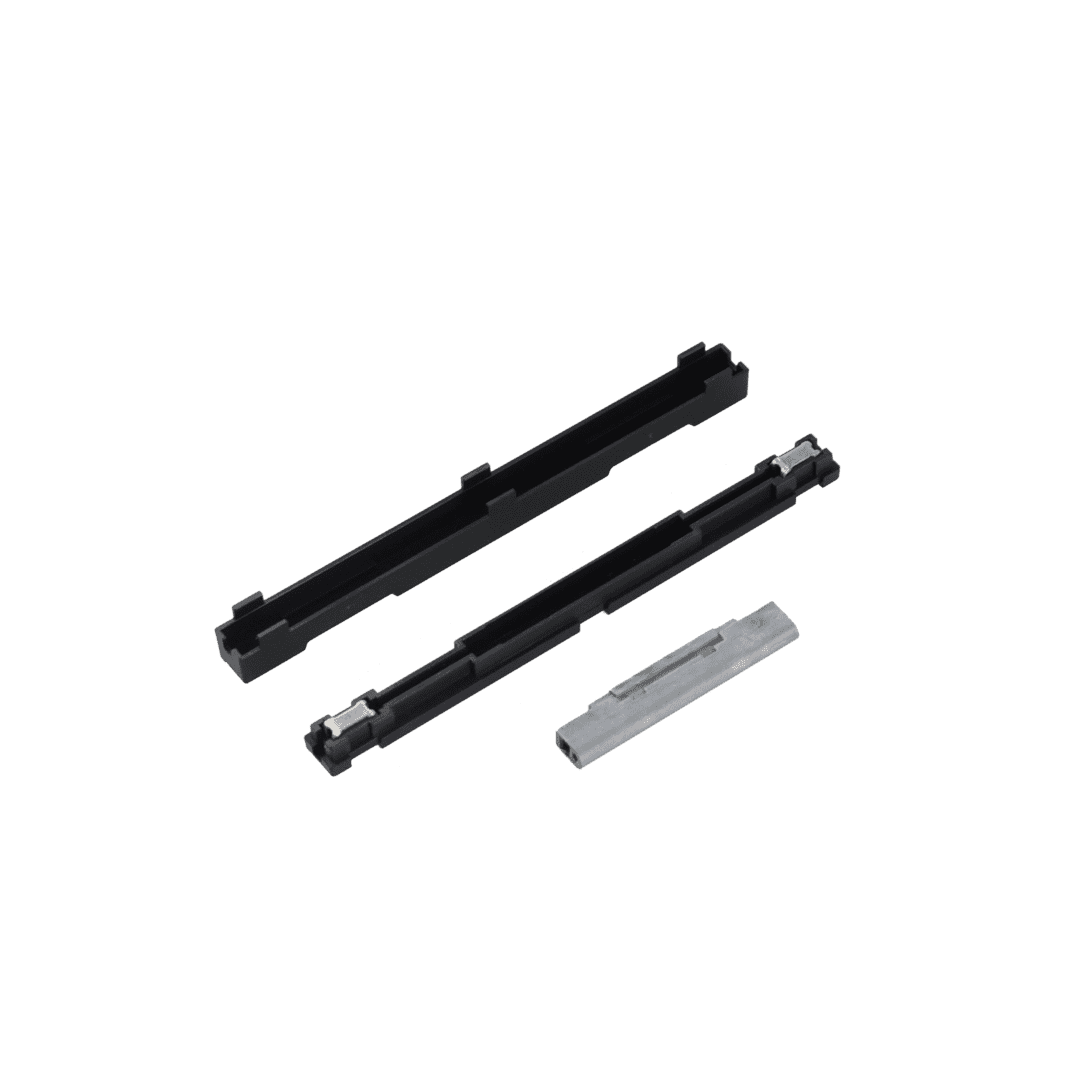

Splice connector

Description

Applications:



◆ Optical fiber communication systems engineering.
◆ Fiber optic data communication network.
◆ Fiber CATV, FTTH engineering.
◆Other optical technology tests.





Features:



◆ Low insertion loss and added loss.
◆ High stability, high reliability, height of attenuation.
◆ High back loss, small volume, light weight.
◆ Shutters open and close automatically.
◆ SC Auto-door connector can be used with a regular SC adapter.
◆Offers the highest level of dust and laser protection available.
◆Connector design conforms to human engineering, easy to handle.
◆ Suitable for optical cable diameter:2.0mm,3.0mm.
◆Meets with RoHS and reach.





Parameters:



Fiber mode Single mode Mulit mode
Insert loss < 0.3dB
Return loss PC> 50dB   APC>60dB
Durability 1000 Times
Operating Temperature 40°C ~ +85°C
Success Rate >98%
Fiber Mode single mode
Tensile Strength >50 N
Optical fiber diameter 125um
Fiber Cable Type 3x2mm Drop Cable or 3.0 mm 2.0mm 0.9mm
