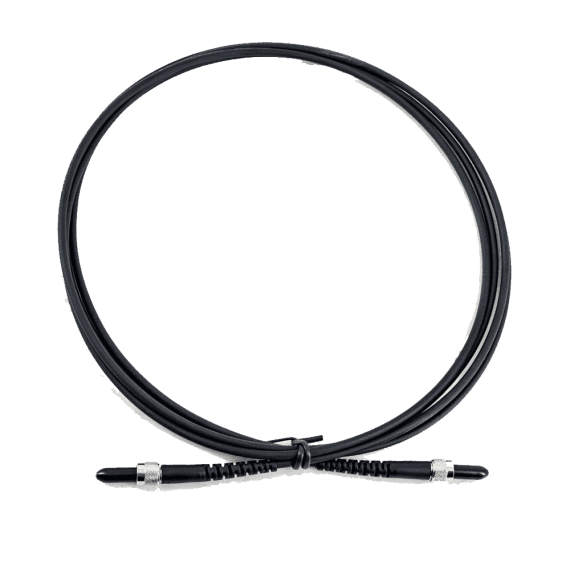

SMA
SMA
Description
Applications:
◆ Optical fiber communication systems engineering.
◆ Fiber optic data communication network.
◆ Fiber CATV, FTTH engineering.
◆Other optical technology tests.
Features:
◆ High dense spaces
◆Ceramic ferrules connectors
◆Low insertion loss,high return loss
◆Half the size of standard connector
◆Excellent mechanical endurance
◆High credibility and stability
◆Good in repeatability and exchangeability
◆100% Insertion,Return Loss, End face and Interference inspection
Parameters:
| Fiber Type | G652D G657 G655 G657B 62.5/125 /OM3/OM4 /50/125 |
| Fiber count | Duplex Simplex 12 24 |
| Diameter | 0.9MM/2.0MM/3.0MM |
| Connector | ST/FC/SC/LC/MTRJ/MU/E2000/MPO/D4,DIN |
| Technical specifications | PC/UPC/APC |
| Cable Material | PVC OFNR LSZH Plenum OFNP |
| Length | 1m/2m/3m/…customized |
| Insertion Loss (dB) | ≤0.2 (max≤0.3) |
| Return loss | PC> 45dB APC>60dB MM ≥35dB |
| Working Wavelength | 1260~1620nm |
| Repeatability（dB） | ≤0.1 |
| Interchangeability（dB） | ≤0.2 |
| Plug times（times） | ≥1000 |
| Tensil Strength（N） | ≥100 |
| Durability（dB） | ≤0.2 |
| Operating temperature（℃） | -45~+75 |
| Storage temperature（℃） | -45~+85 |
