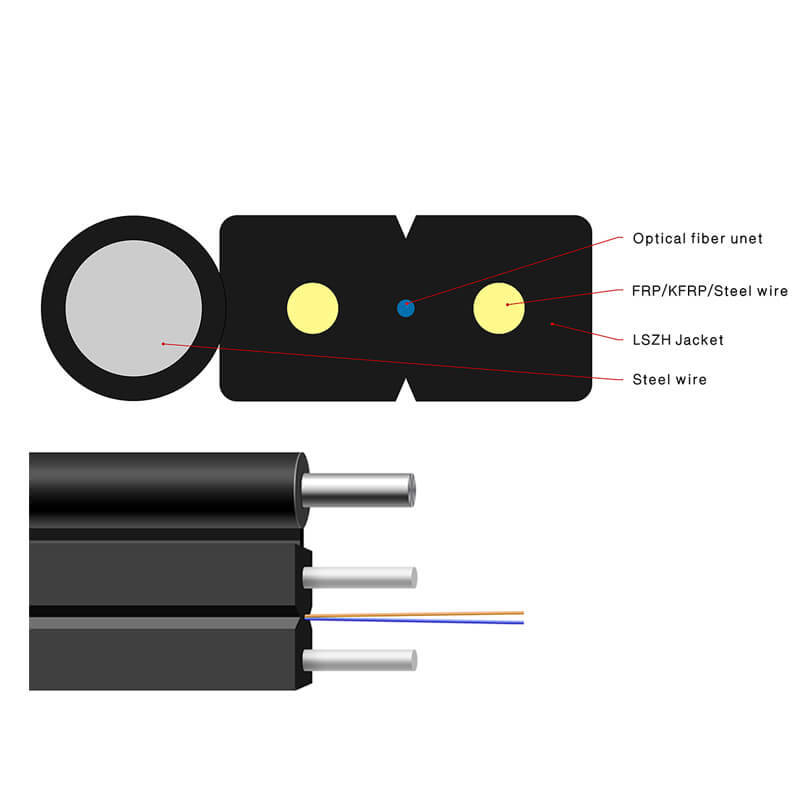

Self-supporting drop cable

Add to wishlist

Description

Applications:



◆Used in access network or as access cable from outdoor to indoor in customer premises network;
◆Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial access cabling.





Features:



◆Good mechanical and environmental characteristics;
◆Flame retardant characteristics meet the requirements of relevant standards;
◆The mechanical characteristics of jacket meet the requirements of relevant standards;
◆Soft, flexible, easy to lay and splice, and with big capacity data transmission;
◆Meet various requirements of market and clients.





Cable Parameters:



Fiber Count Diamension(mmmm) Weight(kg/km) Tensile Strength(N) Crush Resistance(N/100mm) Bending Radius(mm)
Short Term Long Term Short Term Long Term Dynamic Static
1-2 2.0X5.2 20 600 300 2200 1000 60 30
4 2.0X6.0 22 600 300 2200 1000 60 30

Options:



◆Fiber Type: G.652 G.655 or G.657 single-mode fiber, A1a or A1b multi-mode fiber, or other types of fiber;
◆Jacket Material: Environmental low smoke zero halogen flame retardant polyolefin (LSZH), or other contracted material;
◆Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;
◆Cable Dimension: The nominal cable dimension, or other contracted dimension;
◆Delivery Length: 1km or 2km, or other contracted length;
