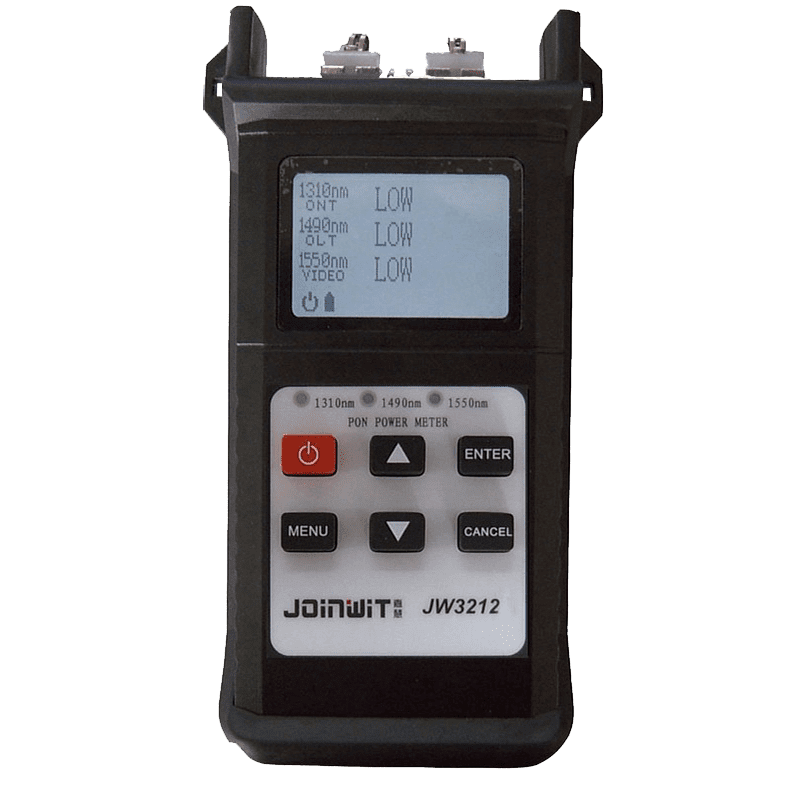

PON power meter-B
PON power meter-B
Description
Features:
◆It can experiment at Voice, data and video signal synchronous measurement and display on BPON/EPON/GPON.
◆Providing simultaneous measurement for all three wavelengths on thefiber (1490nm, 1550nm,1310nm )
◆Used in Burst mode measurement of 1310nm upstream.
◆Use the software connect with PC, setting the threshold, data transfer,and calibration the wavelength.
◆Can support Optical power meter function
◆Can support VFL function
◆Lithium battery, AA alkaline, AC adapter, NI-MH battery for power supply
Parameters:
| 1310 downstream measurement | |||
| Pass Zone(nm) | 1260nm～1360nm | ||
| MeasurementRange(dBm) | -35dBm～+10dBm | ||
| Output power(max) | 15dBm | ||
| Isolation@1490/1550(dB) | >40dB | ||
| Burst mode measurement error | <±0.5dB | ||
| 1490 downstream measurement | |||
| Pass Zone(nm) | 1470nm～1505nm | ||
| MeasurementRange(dBm) | -35dBm～+10dBm | ||
| Output power(max) | 15dBm | ||
| Isolation@1310/1550(dB) | >40dB | ||
| 1550 downstream measurement | |||
| Pass Zone(nm) | 1535nm～1570nm | ||
| MeasurementRange(dBm) | -35dBm～+10dBm | ||
| Output power(max) | 15dBm | ||
| Isolation@（1310/1490nm） | >40dB | ||
| Measurement Accuracy | |||
| Connatural uncertainty(dB) | ±0.5dB | ||
| Linearity(dB) | ±0.1dB | ||
| Passing through insertion Loss(dB) | <1.5dB | ||
| General Information | |||
| Detector Type | InGaAs | ||
| Optical Connector | FC/SC/ST Interchangeable/2.5 universal adapter | ||
| Fiber Type | SM 9/125um | ||
| Measurement Unit | dB/dBm/xW | ||
| Resolution (dB) | 0.01dB | ||
| Operation Voltage(V) | DC 3.3V～5.5V | ||
| Power Supply | 3pc1.5V battery | ||
| Operation Temperature(℃) | -10℃～60℃ | ||
| Storage temperature(℃) | -25℃～70℃ | ||
