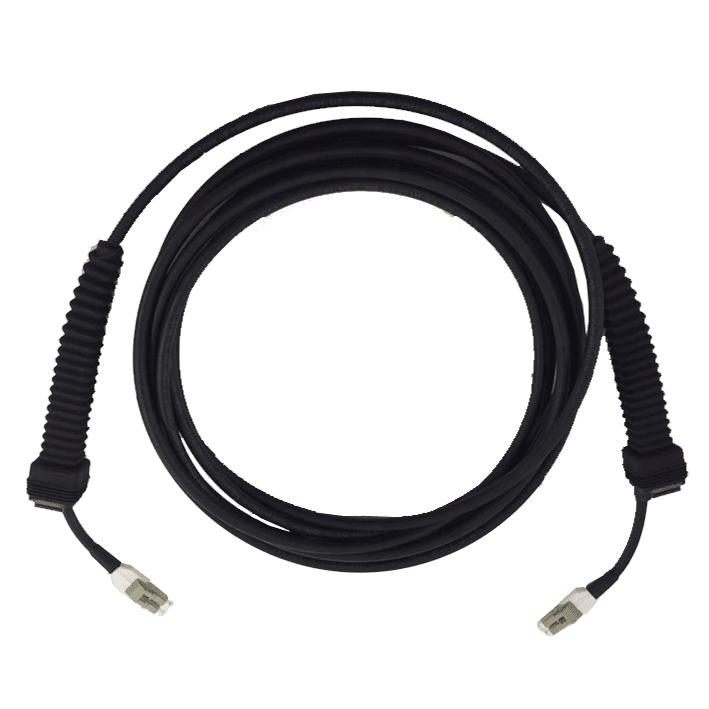

Outdoor waterproof NSN LC- NSN LC
Outdoor waterproof NSN LC- NSN LC
Description
Applications:
◆Fiber-to-the-Antenna (FTTA)
◆Automation and industrial cabling.
◆Naval and ship building, Broadcast.
Features:
◆Support Horizontal and Vertical Cabling for All Common LTE/4G/5G Radio Systems
◆Built-in socket with square or hexagonal flange.
◆Resist strong pressure and stretching.
◆Can effectively adapt to harsh porous environment.
◆Helical Steel Armored Branch Cable for Anti-rodent Protection and Bird-proof.
Parameters:
| Specification | SM | MM |
| Operating Wavelength（nm） | 1310, 1550 | 850， 1300 |
| Typical Insertion Loss（dB） | 0.2 | 0.15 |
| Max. Insertion Loss（dB） | 0.3 | 0.3 |
| Return Loss（In/Out）（dB） | UPCC≥50, APC≥60 | ≥35 |
| MPO Max. Insertion Loss（dB） | Low IL≤0.35, Standard IL≤0.5 | Low IL≤0.35, Standard IL≤0.5 |
| MPO Return Loss（In/Out）（dB） | APC≥50 | Standard IL UPC≥25, Low IL UPC≥35 |
| Interchangeability（dB） | ≤0.2 | ≤0.2 |
| Repeatability（dB） | ≤0.1 | |
| Operating Temperature（℃） | -10 ～ +75 | |
| Storage Temperature（℃） | -40 ～ +85 | |
| Fiber Type | OS2/OM1 OM2 OM3 OM4 OM5 | |
| Fiber Diameter (mm) | Φ5.0mm, Φ7.0mm | |
| Waterproof Grade | IP68 | |
| Flame Retardant Grade | UL94V-0 | |
| Mechanical Durability (Times) | 500 times | |
| Cable Tension (N) | ≥15N | |
| A connector | B connector | cable type | fiber type | fiber cores | Core type | cable diameter | jacket material | length |
| FC.LC.SC.ST. | FC.LC.SC.ST. | indoor cable | SM-G652D | customer | UPC APC | 0.9 2.0 3.0 5.0 7.0 or customer | PVC | 1M |
| MU.MTRJ.LSH. | MU.MTRJ.LSH. | outdoor cable | SM-G657A1 | LSZH | 3M | |||
| E2000.LX.5.V | E2000.LX.5.V | Armoured cable | SM-G657A2 | TPU | 5M | |||
| F-45.DIN.D4. | F-45.DIN.D4. | Base Station Cable | SM-G657B3 | PE | 10M | |||
| MTRJ.MPO.SMA | MTRJ.MPO.SMA | drop cable | SM-G655 | …… | ||||
| .D80 | .D80 | field cable | OM1(62.5) | |||||
| OM2(50) | ||||||||
| OM3(50)-150 | ||||||||
| OM3(50)-300 | ||||||||
| OM4(50)-550 | ||||||||
| OM5(50)-550 |
