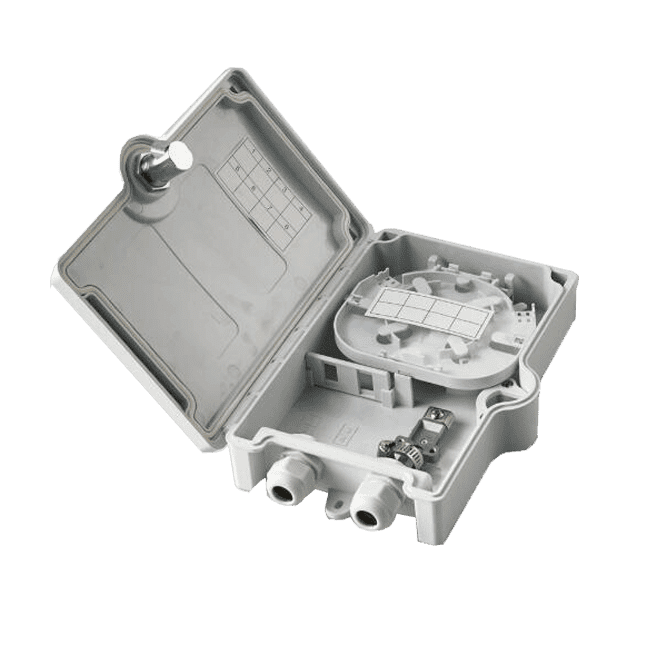

OTB-4-E

Add to wishlist

Description

Fiber Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.





Applications:



◆FTTH access network
◆ Telecommunication network
◆CATV networks
◆ Data ommunications network
◆Local area networks





Features:



◆   Industry Standard User Interface, be made of high impact plastic.
◆  Can accommodate 1×4 & 1X8& 1X16 PLC splitter.
◆  Anti-UV, Ultra violet resistant and rainfall resistant.
◆ Up to 48 FTTH drops.
◆ Wall and pole mountable.
◆ 2&3 inlet ports, 8 12 16 24 48 outlet ports.
◆Special cable fixed position, ensure the cable fixed pulled off force after not less than 50 N.
◆ Job stress: 70 kpa to 108 kpa;
◆Using the temperature:- 40 ~ + 60 ºC
◆ Relative humidity: ≤95% (+ 40 ºC).
◆ Protection grade: IP55.





Parameters:



Model LxWxD (mm) Max Fibers
OTB-F-A 86*86 1
OTB-F-B 86*86 1duplex sc
OTB-F-C 86*86 2 ST
OTB-1-A 123*90*26 1
OTB-1-B 145*89*16 1
OTB-1-C 86*86*22 1
OTB-2-A 84*130*24 2
OTB-2-B 86*86*24 2
OTB-2-C 115*86*25 1duplex sc
OTB-2-D 100*80*23 2
OTB-2-E 123*80*25 1duplex sc
OTB-2-F 167*102*31 2
OTB-2-G 116*70*15 2
OTB-2-H 80*115*25 2
OTB-2-I 102*80*25 2
OTB-2-J 95*90*15 2
OTB-2-K 90*90*16 2
OTB-4-A 150*110*33 4
OTB-4-B 100.5*80.5*28.8 4
OTB-4-C 186*116*40 4
OTB-4-D 100*84*30 4
OTB-4-E 208*153*52 4
OTB-6-A 172*136*40 6
OTB-6-B 170*120*30 6
OTB-6-C 280*130*50 6
OTB-8-A 245*203*69 8
OTB-8-B 210*220*55 8
OTB-8-C 199*160*46 8
OTB-8-D 205*120*30 8
OTB-8-E 190*130*48 8
OTB-8-F 235*125*49 8
OTB-12-A 225*200*65 12
OTB-12-B 250*190*72 12
OTB-12-C 205*180*50 12
OTB-12-D 258*186*61 12
OTB-16-A 315*235*95 16
OTB-16-B 320*260*95 16
OTB-16-C 274*175*82 16
OTB-16-D 285*215*115 16
OTB-16-E 350*310*100 16
OTB-16-F 316*250*126 16
OTB-16-G 220*140*55 16
OTB-16-H 327*258*88 16
OTB-16-I-A 285*175*80 16
OTB-16-I-B 285*175*80 16
OTB-16-I-C 285*175*80 16
OTB-16-J-A 285*175*100 16
OTB-16-J-B 285*175*100 16
OTB-16-J-C 285*175*100 16
OTB-24-A 413*304*120 24
OTB-24-B 320*240*100 24
OTB-24-C 340*250*110 24
OTB-24-D 335*210*95 24
OTB-24-E 300*210*55 24
OTB-48-A 420*350*132 48
OTB-48-B 407*290*130 48
OTB-48-C 480*380*130 48
OTB-48-D 485*415*145 48
OTB-48-E 445*320*180 48
OTB-48-F 450*180*150 48
