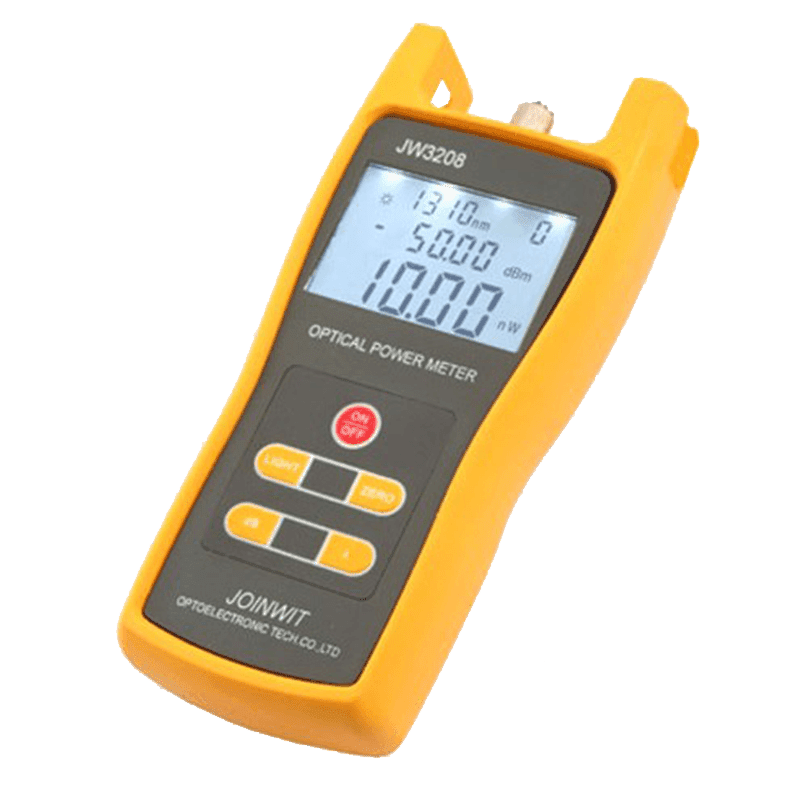

Optical power meter-B

Description

Optical Power Meter and red light all-in-one machine series are controlled by single-chip microprocessor but multifunction. It can be well protected by using embedded detector and laser. The whole machine has automatic shutdown function, three VFL modes, backlight display, wavelength memory function, user calibration, wide test range, lighting, RJ45 cable sequence and cable tracker test functions. It is mainly used for continuous optical signal power measurement, optical fiber link loss test and optical fiber line on-off test. It is widely used in optical cable construction and maintenance, optical fiber communication, optical fiber sensing, Optical CATV and other fields.





Features:



◆Supporting lighting
◆Support backlight switch/automatic shutdown
◆Support working frequency identification (optional)
◆Support simultaneous display of mW/dBm
◆Supporting portable battery charging
◆Support wave memory when shutdown
◆Support user calibration
◆Always on and flashing red light
◆Support SC/FC/ST interface
◆Support RJ45 test (optional)





Parameters:



Wavelength(nm) 800-1700nm
Detector InGaAs
Measurement  Range (dBm) -70~+6 -50~+26
Uncertainty ±5%
Calibrated Wavelength(nm) 850/980/1300/1310/1490/1550/1625/1650nm/1270/1577nm
Resolution(dB) 0.01
Optical Connector FC(interchangeable SC,ST) / as well as 2.5mm universal
Power Supply Lithium Battery or3 AA 1.5V batteries
Battery Operating Time 120 h with 1.5V Battery(3)
Automatic shutdown time 10min
Operating Temperature(℃) -10 ~ +60
Storage Temperature(℃) -25 ~ +70
Relative Humidity 0 to 95% (non-condensing)
