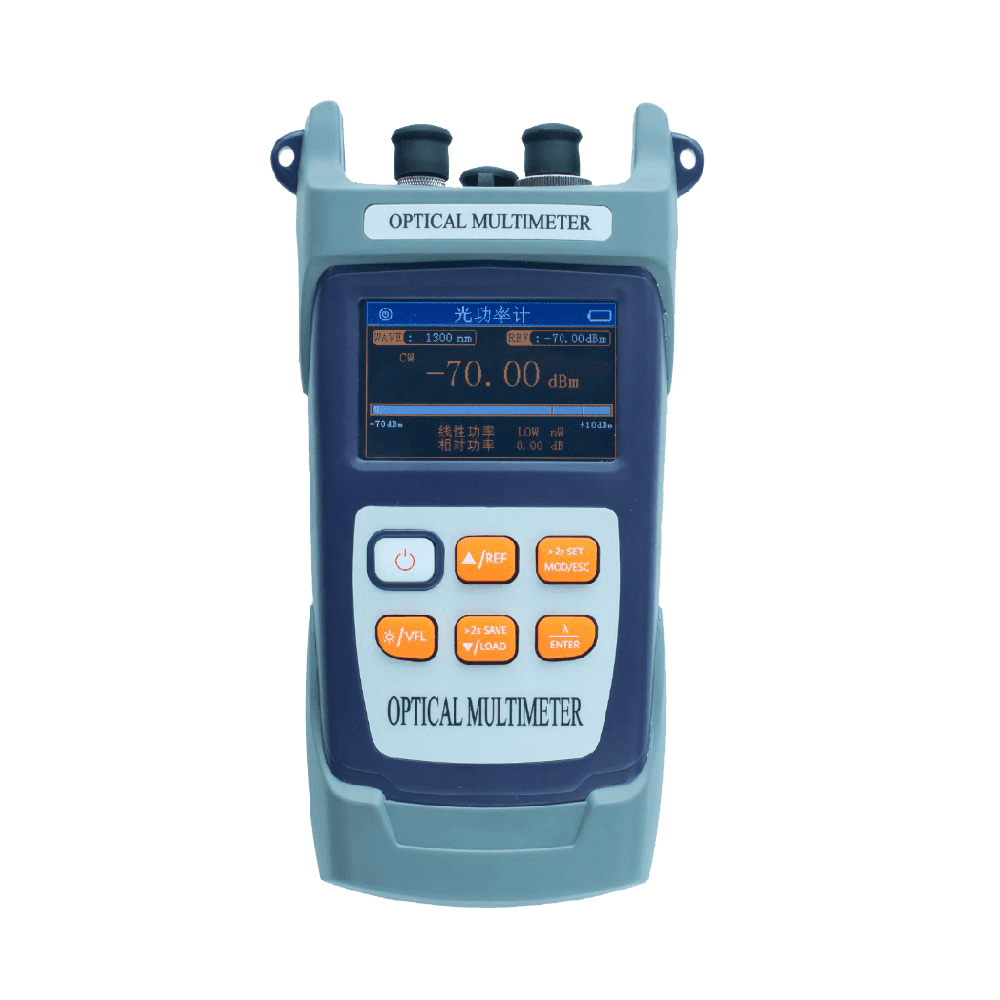

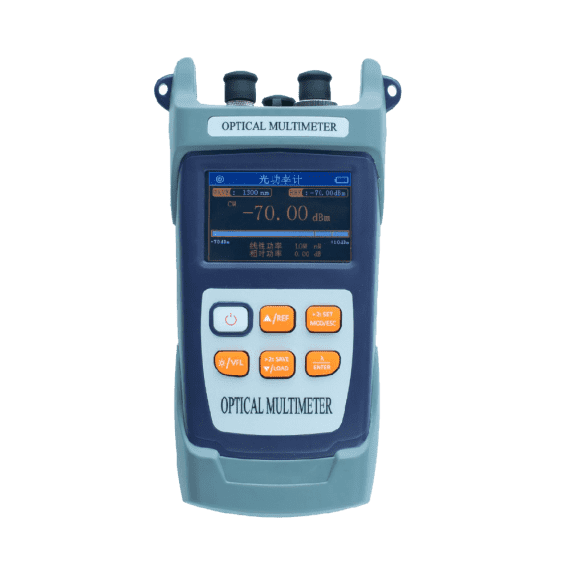

OPM + VFL+OLS Optical wave multimeter

Share with friends

Description

Optical Power Meter and red light all-in-one machine series are controlled by single-chip microprocessor but multifunction. It can be well protected by using embedded detector and laser. The whole machine has automatic shutdown function, three VFL modes, backlight display, wavelength memory function, user calibration, wide test range, lighting, RJ45 cable sequence and cable tracker test functions. It is mainly used for continuous optical signal power measurement, optical ﬁber link loss test and optical ﬁber line on-oﬀ test. It is widely used in optical cable construction and maintenance, optical ﬁber communication, optical ﬁber sensing, Optical CATV and other ﬁelds.

Features:

◆Supporting lighting
◆Support backlight switch/automatic shutdown
◆Support working frequency identiﬁcation (optional)
◆Support simultaneous display of mW/dBm
◆Supporting portable battery charging
◆Support wave memory when shutdown
◆Support user calibration
◆Always on and ﬂashing red light
◆Support SC/FC/ST interface
◆Support RJ45 test (optional)

Parameters:

OPM
Wavelength(nm)	800-1700nm
Detector	InGaAs
Measurement Range (dBm)	-70~+6	-50~+26
Uncertainty	±5%
Calibrated Wavelength(nm)	850/980/1300/1310/1490/1550/1625/1650nm/1270/1577nm
Resolution(dB)	0.01
Optical Connector	FC(interchangeable SC,ST) / as well as 2.5mm universal
Power Supply	Lithium Battery or3 AA 1.5V batteries
Battery Operating Time	120 h with 1.5V Battery(3)
Automatic shutdown time	10min
Operating Temperature(℃)	-10 ~ +60
Storage Temperature(℃)	-25 ~ +70
Relative Humidity	0 to 95% (non-condensing)
VFL
Wavelength(nm)	650
power	2mW 5mW 10mW 15mW 20mW 25mW 30mW
Mode	CW/1Hz/2Hz
connector	2.5mm
LS
Emitter Type	FP-LD
Typical Output Power (dBm)	-5dBm for LD, -20dBm for LED
Power regulation	0-6dB ,1dB step
Output Stability	±0.02dB/ 8hours
Modulation Frequencies	CW,270Hz,1KHz,2KHz
Optical Connector	FC/SC/2.5mm
