ODF-12core

Description

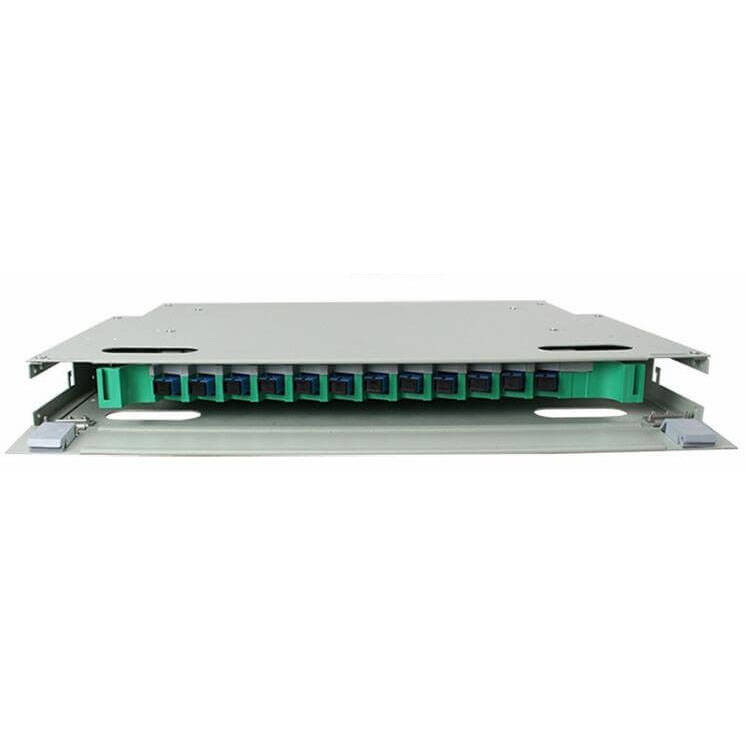

ODF (Optical Distribution Frame) rack mount patch panel ODU-L16 is adaptable with standard 19″, 21’’ and 23’’ frames and currently being widely used in OC’s optical fiber distribution frames, such as GPX series. The rack mount is made of top quality metal material and could contain up to 8 integrated splice & distribution units (up to 96 cores).Splice and distribution are integrated in one module. Each module can complete the splice and distribution processes of 12 cores of fibers. This termination box is used in GPX optical distribution frame (ODF).





Applications:



◆ Optical fiber communication systems engineering.
◆ Fiber optic data communication network.
◆ Fiber CATV, FTTH engineering.
◆Other optical technology tests.





Features:



◆Top quality steel with electrostatic painted ensures the strong body and pleasing appearance.
◆ Easy installation: 19″, 21’’ and 23’’ wall mounting.
◆ For standard 19″, 21’’ and 23’’ racks use (other rack width options available on request).
◆Front rack mount brackets work with most network cabinets.
◆ Easy operations: Drawer-type.
◆ Removable front door with designation labels.
◆Vertical cable guides on exit side allow for managed routing and protection of the fiber exiting the panel.
◆ Multi-functions – Works with all OC Series A modules1 (not just for splicing & terminating, also with options for splitters or fiber storage).
◆ Protected patch panel offers secure environment for adapters, patch cords and pigtails.
◆Adoptable adapter types: FC, SC, ST simplex adapters and LC duplex adapters.





Parameters:



model body size max. capacity(core)
GPX-OC-A 2200x800x400 576
GPX-OC-B 2200x800x300 720
GPX-OC-C 2200X840X300 576
GPX-OC-D 2200X800X300 576
ODF-12 core 485X300X75 12
ODF-24 core 485X300X75 24
ODF-48 core 485X300X135 48
ODF-72 core 485X300X185 72
ODF-96 core 485X300X235 96
