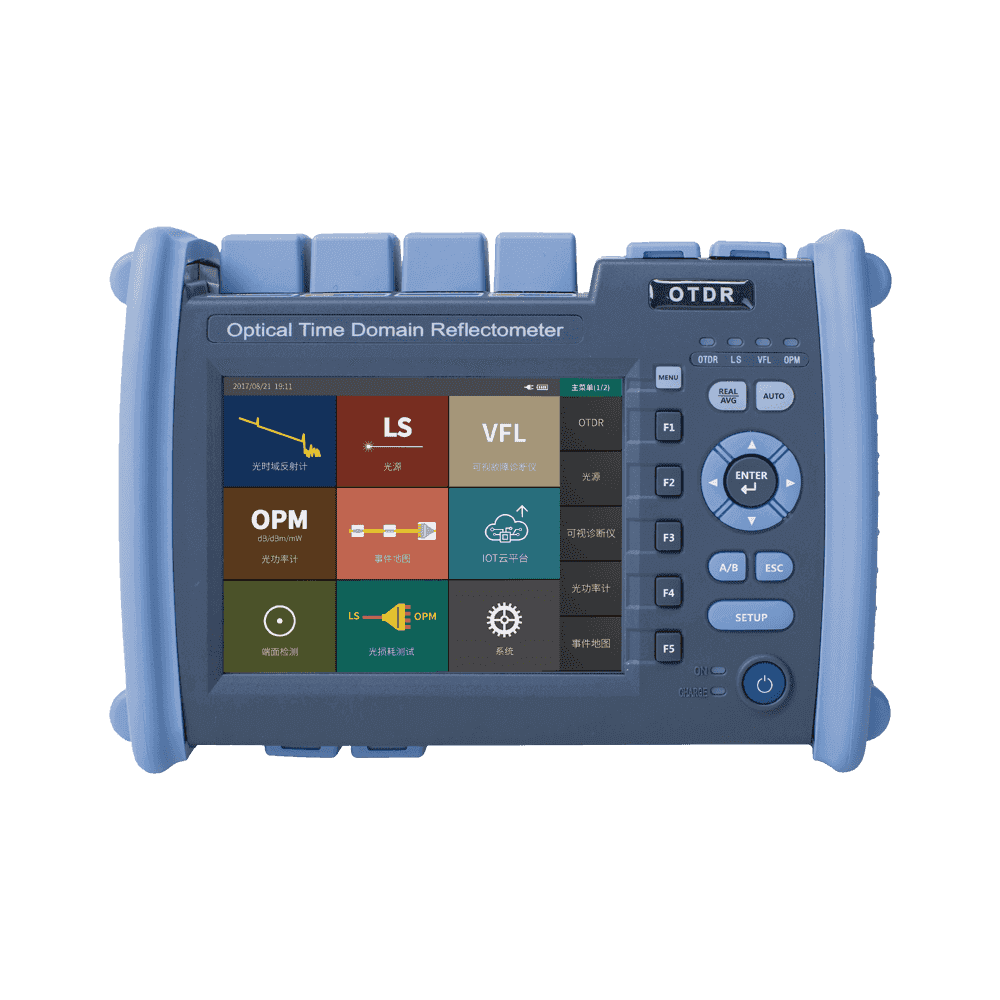

OC305 OTDR

Add to wishlist

Description

Features:



◆Maximum 45dB large dynamic range
◆128k data sampling points
◆High ranging resolution of 0.05m
◆≤0.8m ultra-short event blind zone
◆Easy to test fiber jumper
◆PON network Online test
◆Test each branch of the PON network accurately
◆Feature: OTDR, Event Map, OPM, OLS, VFL, (Microscope Optional)
◆Automatic detect and alarm of incoming optical signals
◆Quickly protect the device
◆Optical output interface FC/SC/ST
◆Built-in High Capacity lithium battery
◆Supports variety language interfaces: Chinese, English, Spanish, French, German, Italian, Portuguese, Russian, Koeran, etc.





Parameters:



Pulse Width Single mode:  5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs
Testing Distance Single mode: 100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km, 240km
Sampling Resolution Minimum 5cm
Sampling Point Maximum 128,000 points
Linearity ≤0.05dB/dB
scale Indication X axis: 4m~70m/div, Y axis: Minimum 0.09dB/div
Distance Resolution 0.01m
Distance Accuracy ±(1m+measuring distance×3×10-5+sampling resolution) (excluding IOR uncertainty)
Reflectance Accuracy Single mode: ±2dB, multi-mode: ±4dB
IOR Setting 1.4000~1.7000, 0.0001 step
Units Km, miles, feet
OTDR Trace Format Telcordia universal, SOR, issue 2 (SR-4731)
OTDR: User selectable automatic or manual set-up
Testing Modes Visual fault locator: Visible red light for fiber identification and troubleshooting
Light source: Stabilized Light Source (CW, 270Hz, 1kHz, 2kHz output)
Fiber Event Analysis -Reflective and non-reflective events: 0.01 to 1.99dB (0.01dB steps)
-Reflective: 0.01 to 32dB (0.01dB steps)
-Fiber end/break: 3 to 20dB (1dB steps)
Other Functions Real time sweep: 1Hz
Averaging modes: Timed (1 to 3600 sec.)
Live Fiber detect: Verifies presence communication light in optical fiber
Trace overlay and comparison
