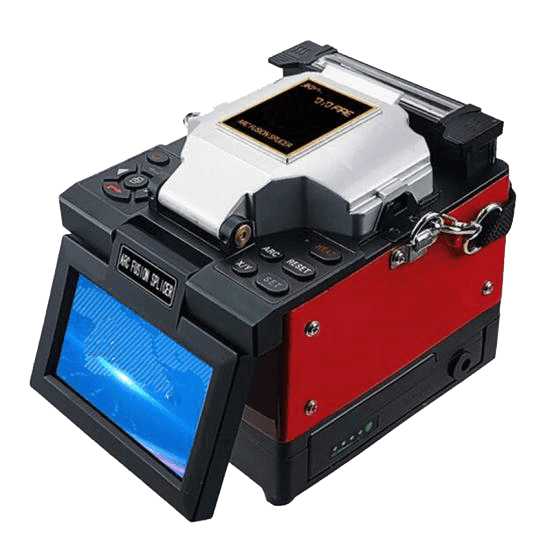

OC-S6 is a stable performance optical fiber fusions splicer with 4 motors, mainly used for fusion and protection of common communications fibers. The battery of large-capacity ensures long-time field operations. As one of the leading manufacturers in China, we will offer you low price and best services.
◆Core to core digital alignment
◆8s for splicing, 18s for tube-heating.
◆4.3-inch touch screen, small size, easy to carry.
◆Three-in-one fiber fixture, suitable for all types of optic fibers.
◆High-power dual-LED light, convenient for night construction.
◆5200mAh removable lithium battery, 280 cycles splicing and heating.
◆ARC calibrated by temperature and air pressure automatically
◆No mirror design, reducing maintenance workload.
◆Apply to high & low temperature, high altitude and harsh environment.
Fiber count | Single |
Applicable fiber | SM (G.652), MM (G.651), DS (G.653), NZDS (G.655), others (like G.657) |
Splicing loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS) |
Return loss | >60dB |
Operate mode | Manual, Auto |
Fiber alignment | Core to core alignment |
Splicing time | Typical 8s |
Heating time | Typical 18s |
Heat shrinkable tube | 60mm, 40mm |
Fiber cleaved length | 8-16mm |
Fiber view magnification | 350X (X or Y view), 150X (X and Y view) |
Display | 4.3-inch touch-screen LCD |
Tension test | 2N |
Battery capacity | 5200mAh removable inner Li-battery, 280 cycles splicing and heating after one-fully charged. |
Electrode life | Around 5000 ARC discharges |
Interface | USB for data download and software update |
Night construction | Built-in high-power dual-LED lights |
Power supply | Adaptor, input: AC100-240V, output: DC13.5V/4.8A. |
Operation condition | Temperature: -15-50℃, humidity: <95%RH (no condensation) |
Working altitude: 0-5000m. Resist max. wind speed: ≤15m/s | |
Weight | 1.95 kg (including battery) |
Dimension | 130mm(L)×154mm(W)×132mm(H) |
