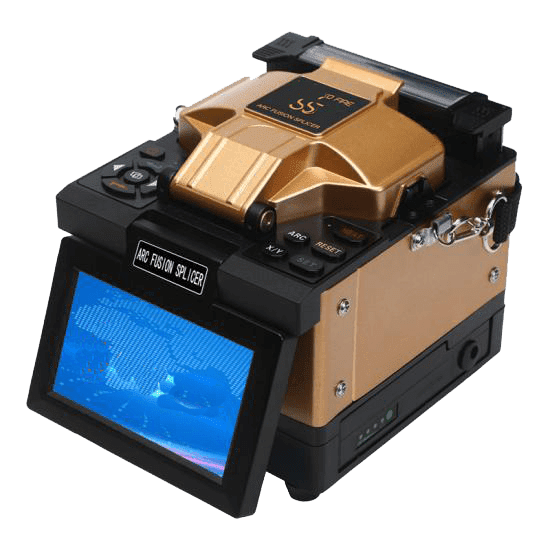

OC-S5

Add to wishlist

Description

OC-S5 is a stable performance optical fiber fusions splicer with 4 motors, mainly used for fusion and protection of common communications fibers. The battery of large-capacity ensures long-time field operations. As one of the leading  manufacturers in China, we will offer you low price and best services.





Features:



◆Core to core digital alignment
◆8s for splicing, 18s for tube-heating.
◆4.3-inch touch screen, small size, easy to carry.
◆Three-in-one fiber fixture, suitable for all types of optic fibers.
◆High-power dual-LED light, convenient for night construction.
◆5200mAh removable lithium battery, 280 cycles splicing and heating.
◆ARC calibrated by temperature and air pressure automatically
◆No mirror design, reducing maintenance workload.
◆Apply to high & low temperature, high altitude and harsh environment.





Parameters:



Fiber count Single
Applicable fiber SM (G.652), MM (G.651), DS (G.653), NZDS (G.655), others (like G.657)
Splicing loss 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS)
Return loss >60dB
Operate mode Manual, Auto
Fiber alignment Core to core alignment
Splicing time Typical 8s
Heating time Typical 18s
Heat shrinkable tube 60mm, 40mm
Fiber cleaved length 8-16mm
Fiber view magnification 350X (X or Y view), 150X (X and Y view)
Display 4.3-inch touch-screen LCD
Tension test 2N
Battery capacity 5200mAh removable inner Li-battery, 280 cycles splicing and heating after one-fully charged.
Electrode life Around 5000 ARC discharges
Interface USB for data download and software update
Night construction Built-in high-power dual-LED lights
Power supply Adaptor, input: AC100-240V, output: DC13.5V/4.8A.
Operation condition Temperature: -15-50℃, humidity: <95%RH (no condensation)
Working altitude: 0-5000m. Resist max. wind speed: ≤15m/s
Weight 1.95 kg (including battery)
Dimension 130mm(L)×154mm(W)×132mm(H)
