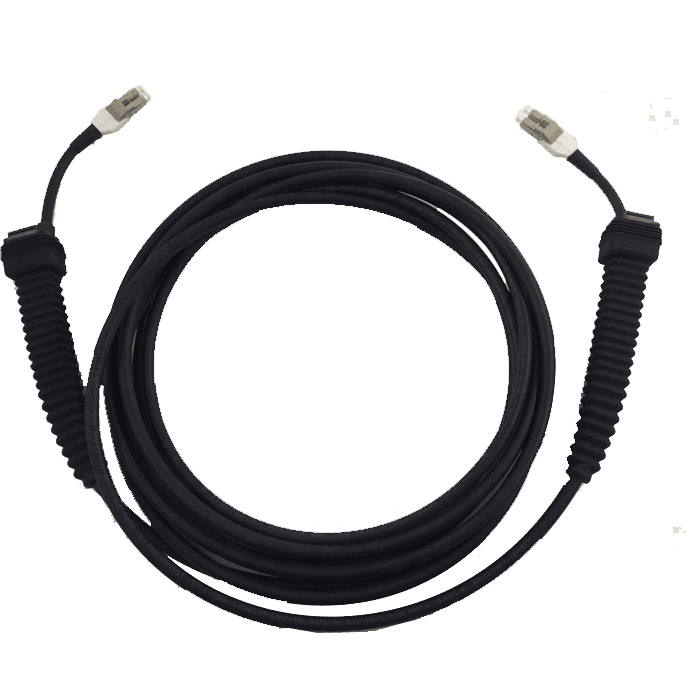

NSN

Description

Applications:



◆ Optical fiber communication systems engineering.
◆ Fiber optic data communication network.
◆ Fiber CATV, FTTH engineering.
◆Other optical technology tests.



Features:



◆ High dense spaces
◆Ceramic ferrules connectors
◆Low insertion loss,high return loss
◆Half the size of standard connector
◆Excellent mechanical endurance
◆High credibility and stability
◆Good in repeatability and exchangeability
◆100% Insertion,Return Loss, End face and Interference inspection



Parameters:



Fiber Type G652D G657 G655 G657B 62.5/125 /OM3/OM4 /50/125
Fiber count Duplex Simplex 12 24
Diameter 0.9MM/2.0MM/3.0MM
Connector ST/FC/SC/LC/MTRJ/MU/E2000/MPO/D4,DIN
Technical specifications PC/UPC/APC
Cable Material PVC OFNR LSZH Plenum OFNP
Length 1m/2m/3m/…customized
Insertion Loss (dB) ≤0.2 (max≤0.3)
Return loss PC> 45dB   APC>60dB MM ≥35dB
Working Wavelength 1260~1620nm
Repeatability(dB) ≤0.1
Interchangeability(dB) ≤0.2
Plug times(times) ≥1000
Tensil Strength(N) ≥100
Durability(dB) ≤0.2
Operating temperature(℃) -45~+75
Storage temperature(℃) -45~+85
