Multi purpose distribution cable

Add to wishlist

Description

Applications:



◆Indoor horizontal wiring, vertical wiring in buildings, LAN network.
“◆Standard core can be directly apply to connectors,to use for device connecting.
connections in optical communication equipment rooms and
distribution frames;”
◆Used as a backbone cable tail can access directly from the indoor and outdoor to save the junction box, isolated lightning, improve system reliability.





Features:

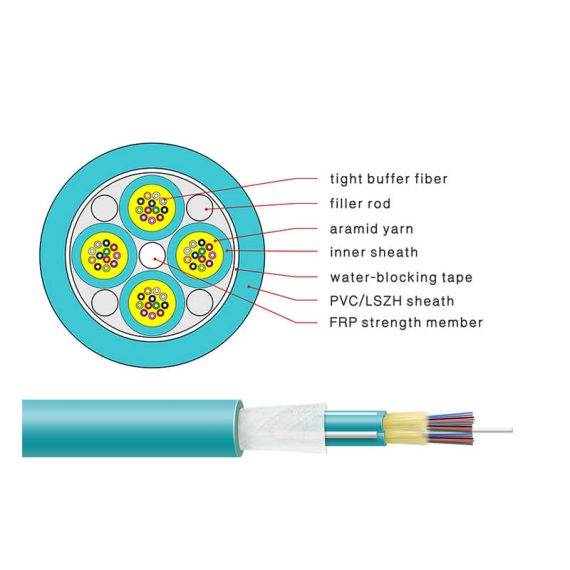

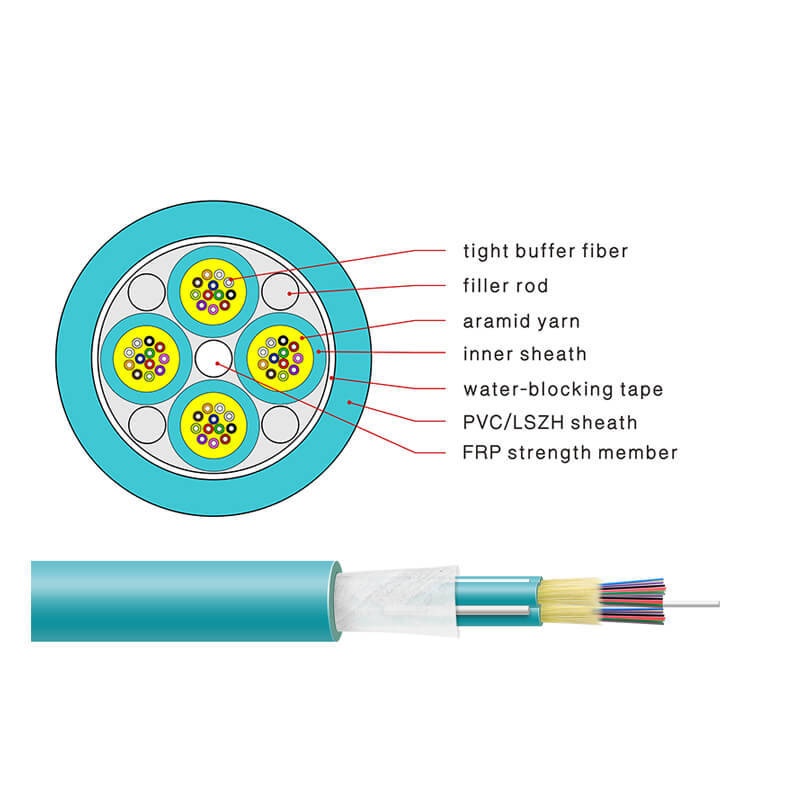

◆Each sub cable contains aramid yarn,good bend performance,without loose tube,cleaning friendly,easy construction and connection.
◆Tight buffer fiber with single strength member and sheath to overcome the effect from bad environment and Mechanical stress.
◆The low smoke and low halogen flame retardant sheath has the characteristics of fire prevention and self extinguishing, and is suitable for indoor environment such as computer room, cable shaft and indoor wiring.
◆LSZH sheath,UV,Waterproof mildew,ESCR,No acid gas release,non-corrosive room equipment, suitable for indoor and outdoor use or need a high flame-retardant grades of the   indoor environment (such as wiring in the ceiling, open wire cabling etc.)





Cable Parameters:

Outer Diameter(mm) Weight(kg/km) Cable Code Tensile Strength(N) Crush Resistance(N/100mm) Bending Radius(mm)
Short Term Long Term Short Term Long Term Dynamic Static
12.3±0.5 124 24 660 200 1000 300 20D 10D
14.5±0.5 180 36 660 200 1000 300 20D 10D
14.8±0.5 170 48 1320 440 1000 300 20D 10D
17.5±0.5 254 72 1320 440 1000 300 20D 10D
20.7±0.5 366 96 1320 440 1000 300 20D 10D
24.8±0.5 451 144 1320 440 1000 300 20D 10D





Options:



◆Fiber Type: G.652 G.655 or G.657 single-mode fiber, A1a or A1b multi-mode fiber, or other types of fiber;
◆Jacket Material: Environmental low smoke zero halogen flame retardant polyolefin (LSZH), or other contracted material;
◆Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;
◆Cable Dimension: The nominal cable dimension, or other contracted dimension;
◆Delivery Length: 1km or 2km, or other contracted length;
