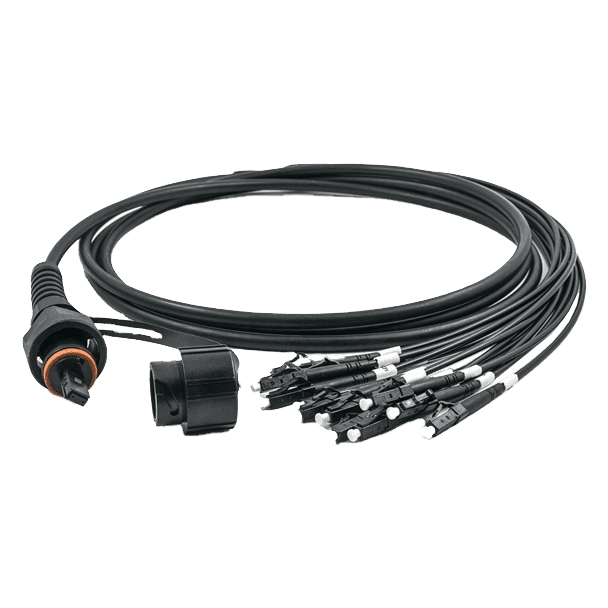

MPO waterproof ODVA
MPO waterproof ODVA
Description
Applications:
◆LAN cabling between different buildings of the enterprise
◆Optical link interconnection in optical active devices
◆Wiring in communication base stations and wiring in distribution boxes
◆Optical signal connection in residential quarters, industrial park computer rooms and commercial buildings
◆Building dense wiring system
Features:
◆MPO connector complied with IEC-61754-7
◆A quick-to-deploy
◆Scalable solution
◆High compatibility,flexibility&system performance
◆Lower installation cost
Parameters:
| Parameter | Unit | SM | MM | |||
| Insertion Loss | Min | dB | Low Loss | 0.35 | Low Loss | 0.35 |
| Standard Loss | 0.7 | Standard Loss | 0.6 | |||
| Return Loss | Max | dB | 60 | 20 | ||
| Test wavelength | nm | 1310/1550 | 850/1300 | |||
| Channel number | / | 4/8/12/24 | ||||
| FA Material | / | BF33,Pyrex | ||||
| Core pitch | um | 127,250,others | ||||
| Core pitch error | Max | 0.5.0.7.1.0 | ||||
| Polish/Title angle tolerance | ° | +/-0.3.+/-0.5 | ||||
| Compliance standard | / | GR-1209-CORE,GR-1221-CORE,GR-1435-CORE | ||||
| Operating temperature | ℃ | -20 to +70 | ||||
| Storage Temperature | ℃ | -40 to +85 | ||||
