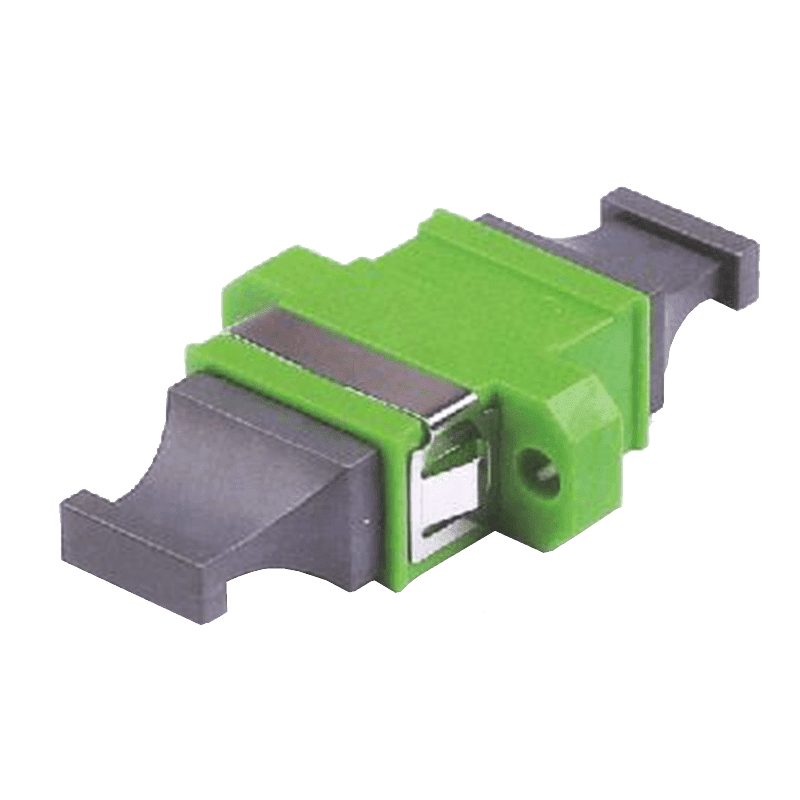

MPO/APC adapter

Description

Applications:



◆LAN cabling between different buildings of the enterprise
◆Optical link interconnection in optical active devices
◆Wiring in communication base stations and wiring in distribution boxes
◆Optical signal connection in residential quarters, industrial park computer rooms and commercial buildings
◆Building dense wiring system





Features:



◆MPO connector complied with IEC-61754-7
◆A quick-to-deploy
◆Scalable solution
◆High compatibility,flexibility&system performance
◆Lower installation cost





Parameters:



Parameter Unit SM MM
Insertion Loss Min dB Low Loss 0.35 Low Loss 0.35
Standard Loss 0.7 Standard Loss 0.6
Return Loss Max dB 60 20
Test wavelength nm 1310/1550 850/1300
Channel number / 4/8/12/24
FA Material / BF33,Pyrex
Core pitch um 127,250,others
Core pitch error Max 0.5.0.7.1.0
Polish/Title angle tolerance ° +/-0.3.+/-0.5
Compliance standard / GR-1209-CORE,GR-1221-CORE,GR-1435-CORE
Operating temperature -20 to +70
Storage Temperature -40 to +85
