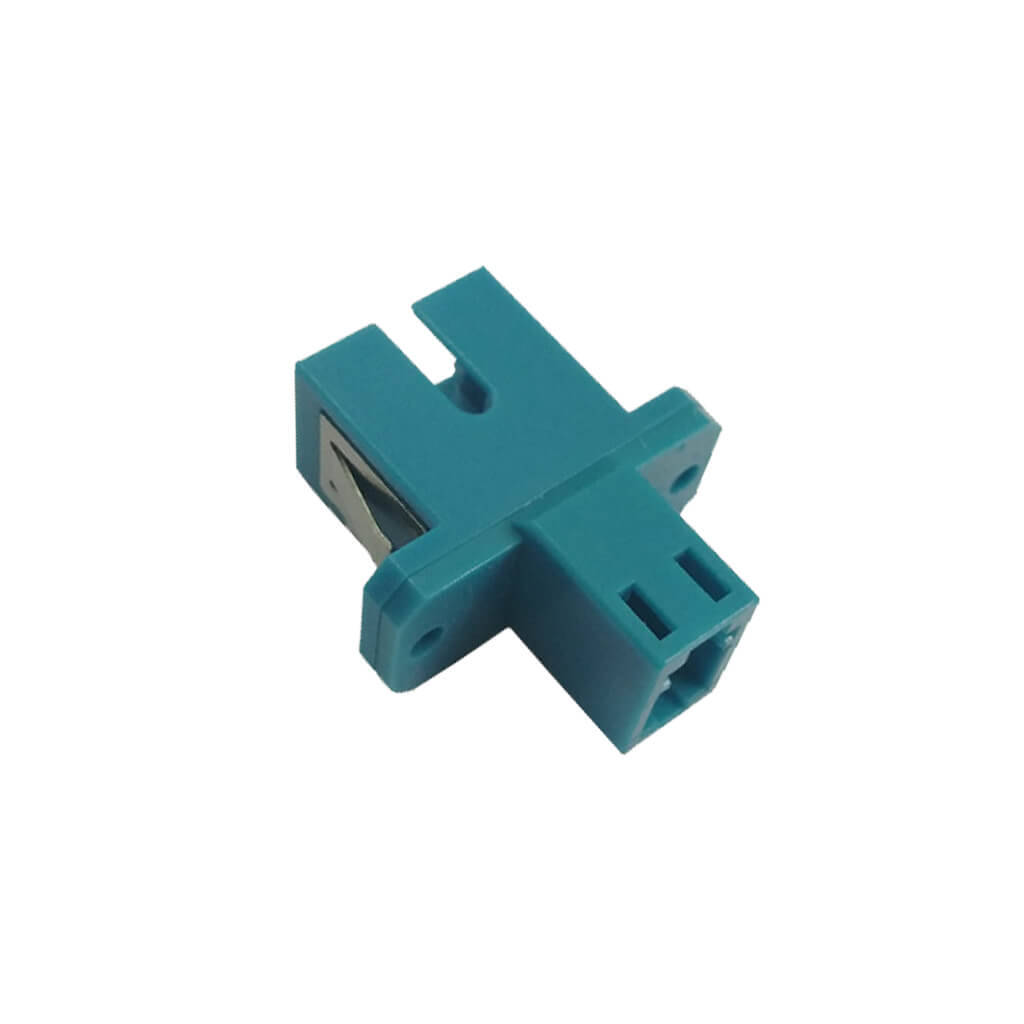

LC-SC plastic adapter

Description

Applications:



◆ Optical fiber communication systems engineering.
◆ Fiber optic data communication network.
◆ Fiber CATV, FTTH engineering.
◆Other optical technology tests.





Features:



◆ Low insertion loss and added loss.
◆ High stability, high reliability, height of attenuation.
◆ High back loss, small volume, light weight.
◆Offers the highest level of dust and laser protection available.
◆Meets with RoHS and reach.
◆ Complete category, strong choice, support customized





Parameters:



Fiber type FC/SC/ST/LC/MU/E2000/MPO
Fiber mode Single mode Mulit mode
Insert loss < 0.3dB
Return loss PC> 45dB   APC>60dB
material PC PBT
sleeve material zirconia or phosphor bronze sleeve
Working Wavelength 1200~1600nm
Storage Temperature – 55 to + 85
Operating Temperature – 40 to + 75
