GYTC8A

Add to wishlist

Description

Applications:



◆Telecom Network Construction
◆Construction of communication base stations in rural and remote areas of cities and towns
◆Urban residential communities and buildings in the optical fiber
◆Security monitoring project
◆And other occasions where information and power are needed.
◆Product standards
◆Light cable tensile, impact, bending, flattening, torsion, winding and wear in compliance with YD/T901-2001 requirements





Features:



◆Good mechanical and temperature performance
◆High strength loose tube that is hydrolysis resistant
◆Special tube filling compound ensure a critical protection of fiber
◆PE sheath protects cable from ultraviolet radiation
◆Good crush ability,applies for duct and directly buried application

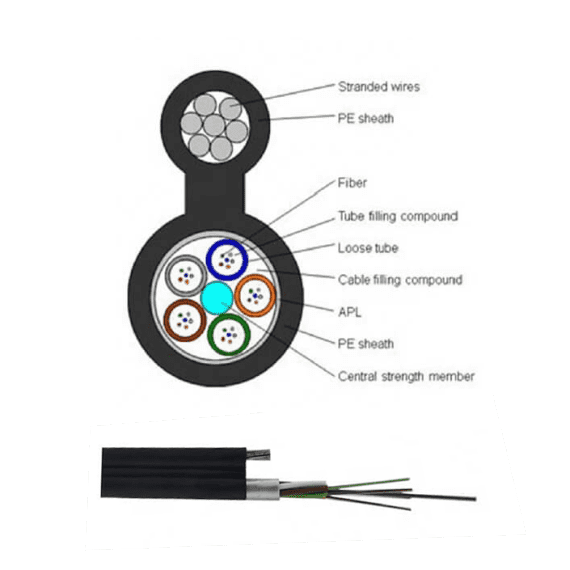

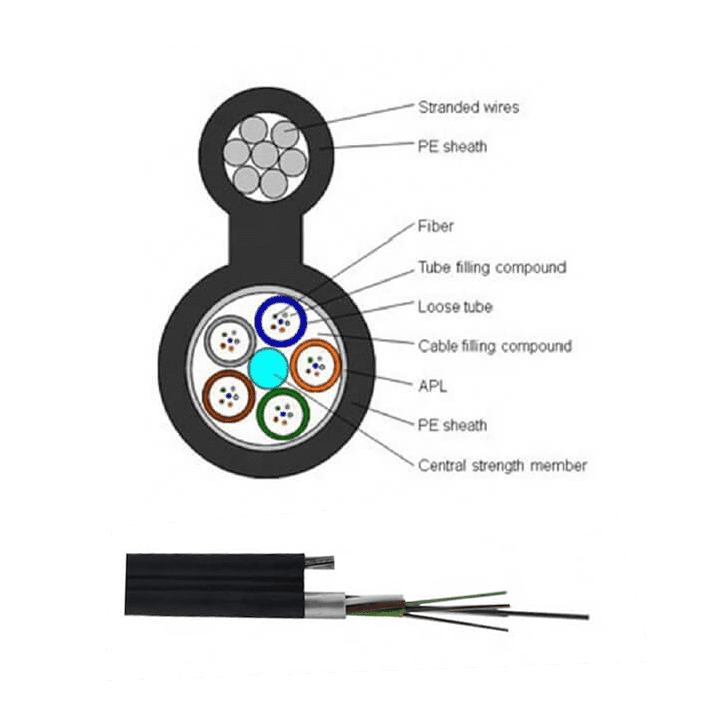

◆To assure the water-proof function by:
◆Single steel wire as central strength member
◆Special tube filling compound ensure a critical protection of fiber
◆Specially designed compact structure is good at preventing loose tubes from shrinking
◆Fully filled in the cable
◆APL layer





Cable Parameters:



Fiber count Outer diameter(mm) Weight(kg/km) Tension(N) Crash loading(N/100mm)
Short Term Long Term Short Term Long Term
2-30 9.5 86 1500 600 1000 300
32-60 10.2 99
62-72 10.9 123
74-84 12.2 148
88-96 12.2 148
96-120 14 183
122-144 14.5 220
146-216 16.1 229
218-300 18.5 290





Options:



◆Fiber Type: G.652 G.655 or G.657 single-mode fiber, A1a or A1b multi-mode fiber, or other types of fiber;
◆Jacket Material: Environmental low smoke zero halogen flame retardant polyolefin (LSZH), or other contracted material;
◆Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;
◆Cable Dimension: The nominal cable dimension, or other contracted dimension;
◆Delivery Length: 1km or 2km, or other contracted length;
