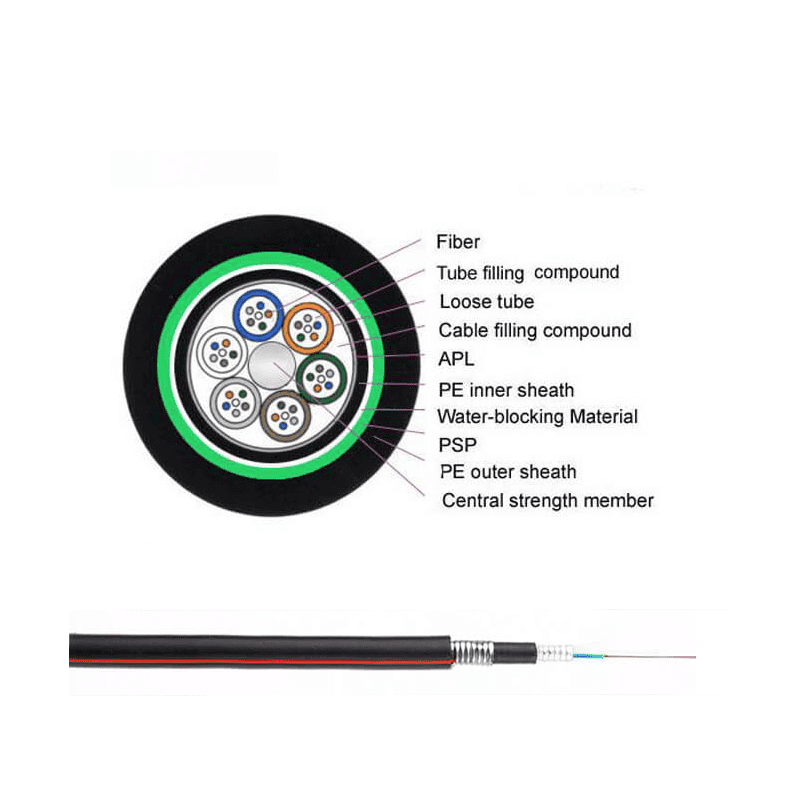

GYTA53

Description

Applications:



◆Telecom Network Construction
◆Construction of communication base stations in rural and remote areas of cities and towns
◆Urban residential communities and buildings in the optical fiber
◆Security monitoring project
◆And other occasions where information and power are needed.
◆Product standards
◆Light cable tensile, impact, bending, flattening, torsion, winding and wear in compliance with YD/T901-2001 requirements



Features:

◆Good mechanical and temperature performance

◆High strength loose tube that is hydrolysis resistant

◆Special tube filling compound ensure a critical protection of fiber

◆PE sheath protects cable from ultraviolet radiation

◆Good crush ability,applies for duct and directly buried application

◆To assure the water-proof function by:

◆Single steel wire as central strength member

◆Special tube filling compound ensure a critical protection of fiber

◆Fully filled in the cable

◆Double APL layers prevent the moisture

◆Good water-blocking tape prevent the sinking vertically



GYTY53

Fiber count Outer diameter(mm) Weight(kg/km) Tension(N) Crash loading(N/100mm)
Short Term Long Term Short Term Long Term
2-30 11.9 139 3000 1000 3000 1000
32-60 12.7 155
62-72 13.1 181
74-84 14.8 212
88-96 14.8 212
96-120 16.1 258
122-144 17.8 306



Options:



◆Fiber Type: G.652 G.655 or G.657 single-mode fiber, A1a or A1b multi-mode fiber, or other types of fiber;
◆Jacket Material: Environmental low smoke zero halogen flame retardant polyolefin (LSZH), or other contracted material;
◆Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;
◆Cable Dimension: The nominal cable dimension, or other contracted dimension;
◆Delivery Length: 1km or 2km, or other contracted length;
