Description

Applications:

◆Telecom Network Construction
◆Construction of communication base stations in rural and remote areas of cities and towns
◆Urban residential communities and buildings in the optical fiber
◆Security monitoring project
◆And other occasions where information and power are needed.
◆Product standards
◆Light cable tensile, impact, bending, flattening, torsion, winding and wear in compliance with YD/T901-2001 requirements

Features:

◆Good mechanical and temperature performance
◆High strength loose tube that is hydrolysis resistant
◆Special tube filling compound ensure a critical protection of fiber
◆PE sheath protects cable from ultraviolet radiation
◆Good crush ability,applies for duct and directly buried application
◆To assure the water-proof function by:

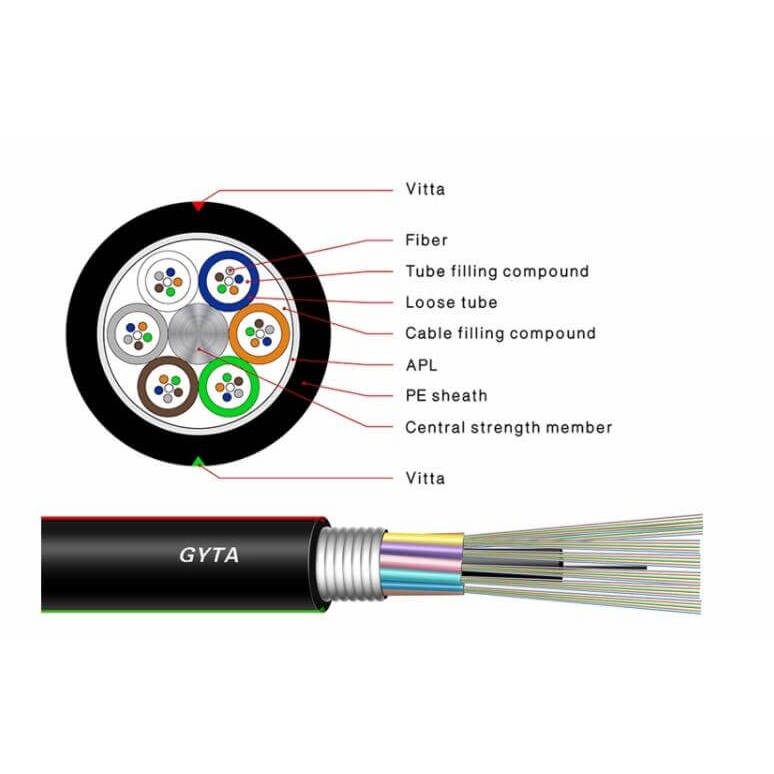

◆Single steel wire as central strength member
◆Special tube filling compound ensure a critical protection of fiber
◆Fully filled in the cable
◆Double APL layers prevent the moisture
◆Good water-blocking tape prevent the sinking vertically

Cable Parameters:

Options:

◆Fiber Type: G.652 G.655 or G.657 single-mode fiber, A1a or A1b multi-mode fiber, or other types of fiber;
◆Jacket Material: Environmental low smoke zero halogen flame retardant polyolefin (LSZH), or other contracted material;
◆Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;
◆Cable Dimension: The nominal cable dimension, or other contracted dimension;
◆Delivery Length: 1km or 2km, or other contracted length;
