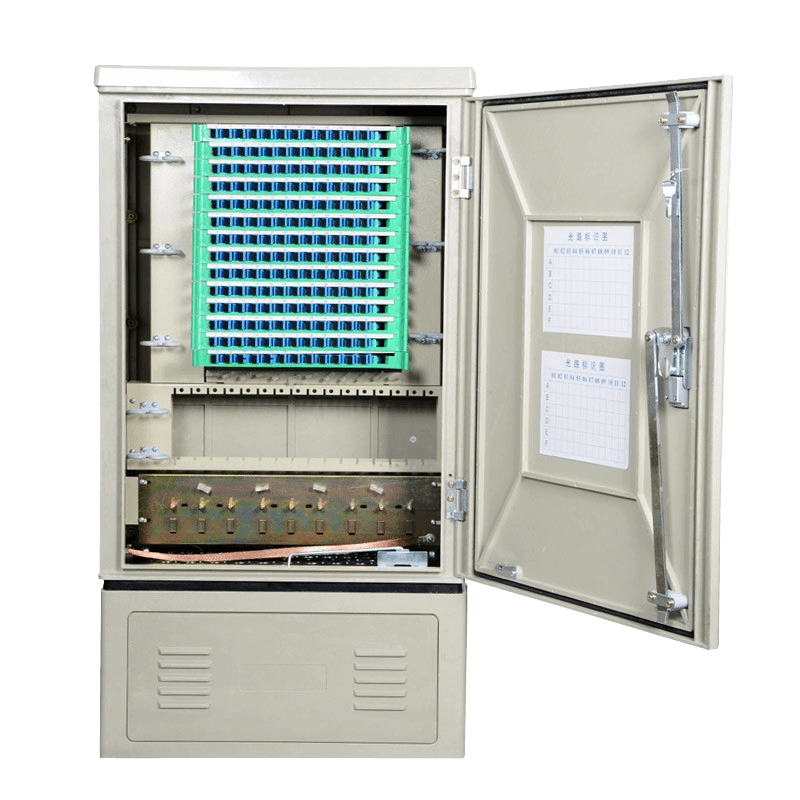

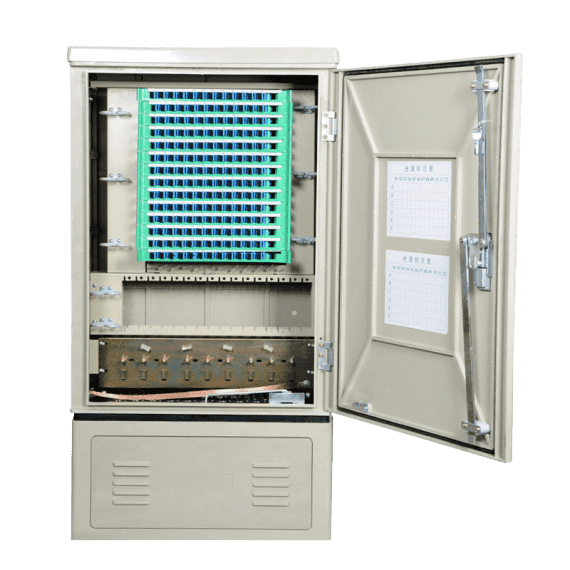

GXF-OC-144-B

Description

Fiber Optic Cross Connection Cabinet is an outdoor optical equipment that is especially designed for outdoor optical nodes in access network. The cabinet is made by Material SMC and has large capacity which is suitable for the expansion of fiber optic cabinet.





Applications:



◆ Optical fiber communication systems engineering.
◆ Fiber optic data communication network.
◆ Fiber CATV, FTTH engineering.
◆Other optical technology tests.





Features:



◆Adopt stainless steel frame, double-layer structure, is provided with heat insulation layer.
◆Dust-free, waterproof and mothproof, can withstand the extreme temperatures and harsh working environment for a long time, protection grade reached IP65.
◆Front or double side operation, clear and reasonable layout, large wiring operation space, convenient operation and maintenance.
◆ Use RPYT-12A or RPYT-12B connection module, left or right inclined light port, can install FC, SC, ST adapters.
◆ Applicable to ordinary fiber optic cable and fiber optic ribbon cable.
◆ Some types cabinets have cable direct fusion function, convenient to construction.
◆ Grounding and wall mount installations.





Parameters:



Model Size(highXwidthXdeep) MAX capacity installation size way to install
GXF-OC-72(144) 620X440X280 144 / handing installation
GXF-OC-96 710X550X330 72~96 454X172 handing installation   the ground installtion
GXF-OC-144-A 1035X555X310 144 725X52X290 handing installation   the ground installtion
GXF-OC-144-B 1035X555X310 144 463X173 handing installation   the ground installtion
GXF-OC-288-A 1450X750X320 288 615X160 handing installation   the ground installtion
GXF-OC-288-B 1450X750X320 288 615X160 handing installation   the ground installtion
GXF-OC-576-A 1450X750X540 576 615X384 the ground installtion
GXF-OC-576-B 1450X750X540 576 615X384 the ground installtion
GXF-OC-1152-A 1550X1460X620 1152 1314X466 the ground installtion
