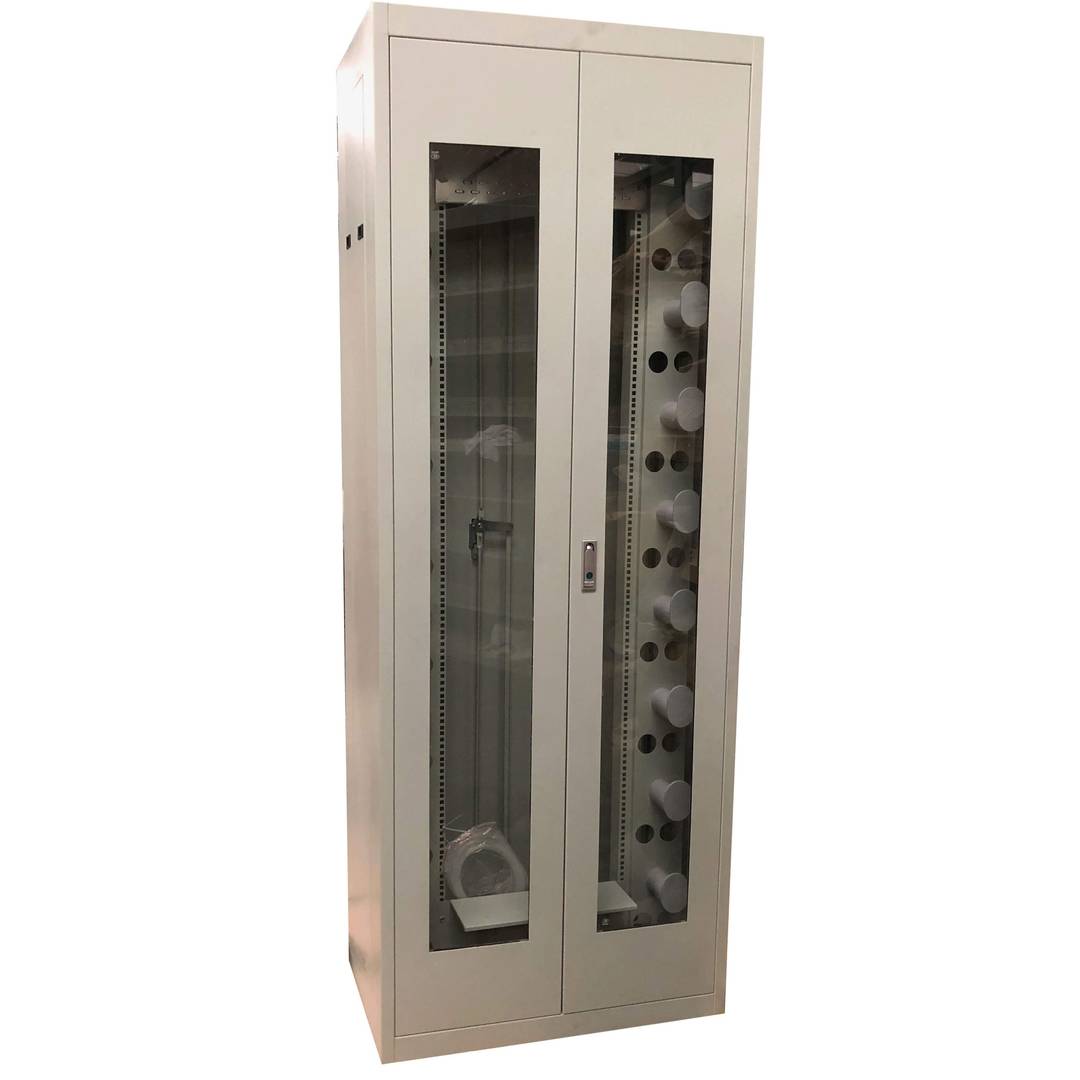

GPX-OC-C

Description

Fiber optic cabinet is a high-capacity, high-density fiber distribution frame, It is suitable for the composition and distribution of fibers in optical access network to achieve the fiber optic lines connection, distribution and scheduling.





Applications:



◆ Optical fiber communication systems engineering.
◆ Fiber optic data communication network.
◆ Fiber CATV, FTTH engineering.
◆Other optical technology tests.





Features:



◆There are 19” mounting rails in the middle of the frame for installing ODFs
◆Available color: white, black, grey or any other colors on request
◆ All the plastic elements in the frame are fire-resistant meets UL-94
◆Reliable cable fixture cover and earth protection device/ grounding system provided
◆A sticky label with the warning “Caution laser radiation” will be stuck to the frame
◆ Enough space for fiber distribution and storage space and very easy for installation and operation
◆ Fully front side operation, convenient for maintenances
◆ Minimum bend radius is controlled of 30mm
◆Cable guides mounted on left and right side of canal are removable and relocatable to different positions within the same vertical line, to ensure a minimum bend radius of 30mm for the patch cords from any ODFs
◆ There are two lateral canals with separate doors (on left and right side of the frame) for distribution and management of fiber optical cables
◆The side-hinged doors help to well protect the patch cords distribution area
◆ The optical cable inlet system is installed on the top or bottom of the frame which has excellent performances for fixing the incoming cables
◆ Cables can be entered to the frame either from top or the bottom of the frame subject to different requirements
◆ This Frame is suitable for both bundle (loose) cables and ribbon type cables





Parameters:



model body size max. capacity(core)
GPX-OC-A 2200x800x400 576
GPX-OC-B 2200x800x300 720
GPX-OC-C 2200X840X300 576
GPX-OC-D 2200X800X300 576
ODF-12 core 485X300X75 12
ODF-24 core 485X300X75 24
ODF-48 core 485X300X135 48
ODF-72 core 485X300X185 72
ODF-96 core 485X300X235 96



Temperature -5℃ — 60℃
Humidity 90% at 30℃
Air Pressure 70kPa – 106kPa
Lead Time 2 weeks
