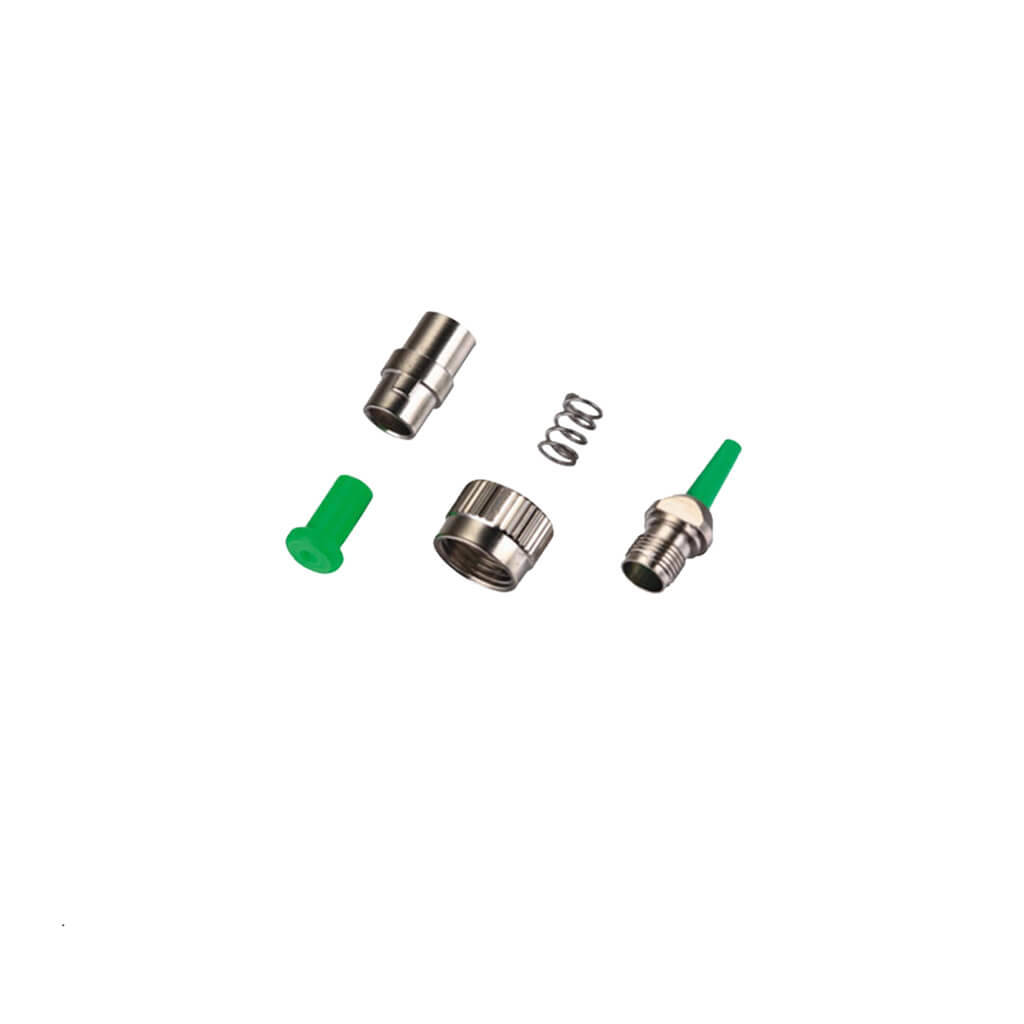

FC/APC 0.9mm

Description

Applications:



◆ Telecommunication Network
◆ LAN, wan, data and video transmission.
◆ FTTH & FTTx
◆Optical fiber access of mobile base station.





Features:



◆ The connector is designed to meet the requirements of IEC 61754-20
◆ Meet the test requirements of GR326-SFF
◆ Made of RoHS & REACH Material and UL94-V0 rated type
◆Offers the highest level of dust and laser protection available.
◆Meets with RoHS and reach.
◆ Complete category, strong choice, support customized





Parameters:



Housing Boot Type Boot Color
PC SM:Blue 0.9mm White
APC SM:Green 2.0mm Blue
MM:Beige 3.0mm Red
MM OM3:Aqua Black
MM OM4:Heather Violet Yellow
MM OM5:Lemon Yellow
Insertion Loss ≤0.25dB
Return Loss ≥50dB (UPC)  60dB (APC)
Operating temperature -40~+85℃
