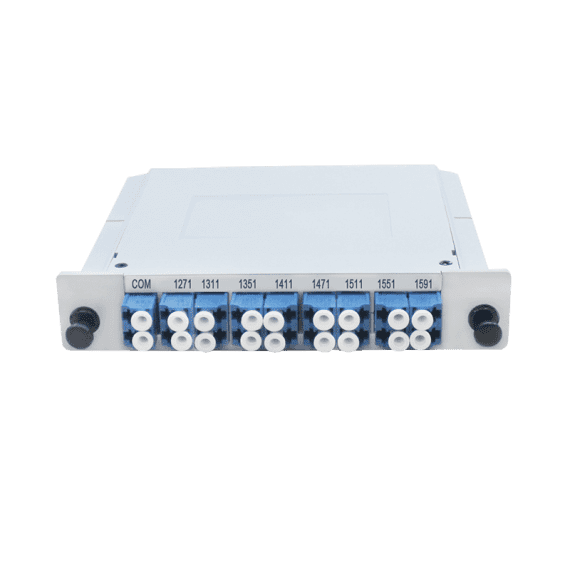

DWDM LGX
DWDM LGX
Description
Applications:
◆Channel Add/Drop
◆DWDM Network
◆Wavlength Routing
◆CATV fiberoptic System
◆Fiber optical amplifier
Features:
◆Low Insertion Loss
◆Wide pass band
◆High channel
◆High stability and reliability
◆Epoxy free on optical path
Parameters:
| Parameter | 4-Channels | 8-Channels | 16-Channels | ||||
| Mux | Demux | Mux | Demux | Mux | Demux | ||
| Channel Wavelength（nm） | ITU Grid | ||||||
| Channel Spacing（GHz） | 100 / 200 | ||||||
| Channel Passband (@-0.5dB bandwidth(nm) | ≥0.22（100G）/ ≥0.5（200G） | ||||||
| Insertion Loss（dB） | ≤1.8 | ≤3.0 | Low≤3.5 Standard≤5.0 | ||||
| Channel Ripple（dB） | ≤0.5 | ||||||
| Isolation（dB） | Adjacent | ≥30 | |||||
| Non-adjacent | ≥40 | ||||||
| Insertion Loss Temperature Sensitivity(dB) | ≤0.5 | ||||||
| Wavelength Temperature Shifting (nm/℃) | ≤0.001 | ||||||
| Polarization Dependent Loss（dB） | ≤0.2 | ||||||
| Polarization Mode Dispersion（ps） | ≤0.1 | ||||||
| Directivity（dB） | ≥45 | ||||||
| Return Loss（dB） | ≥45 | ||||||
| Maximum Power Handling（mW） | 300 | ||||||
| Opterating Temperature(℃) | -10~+70 | ||||||
| Storage Temperature (℃) | -40~+85 | ||||||
| Package dimension(mm) | L100×W80×H10 | L120×W80×H18 | |||||
| 19″ 1U Rackmount | |||||||
