CWDM rack type

Description

Applications:



◆Line monitoring
◆WDM network
◆Telecommunication
◆Cellular application
◆Fiber optical amplifier
◆Access network





Features:



◆Low Insertion Loss
◆Wide pass band
◆High channel
◆High stability and reliability
◆Epoxy free on optical path





Parameters:



Parameter 4 Channels 8 Channels 16 Channels
Mux Demux Mux Demux Mux Demux
Channel Wavelength(nm) 1270~1610 or 1271~1611
Channel Spacing(nm) 20
Channel Passband (@-0.5dB bandwidth (nm) ≥13
Insertion Loss(dB) ≤1.5 ≤2.5 Low≤3.5  Standard≤4.5
Isolation(dB) Adjacent ≥30
Non-adjacent ≥40
Insertion Loss Temperature Sensitivity(dB) ≤0.5
Wavelength Temperature Shifting (nm/℃) ≤0.002
Polarization Dependent Loss(dB) ≤0.2
Polarization Mode Dispersion(ps) ≤0.1
Directivity(dB) ≥50
Return Loss(dB) ≥45
Maximum Power Handling (mW) 300
Opterating Temperature(℃) -10~+70
Storage Temperature (℃) -40~+85
Package dimension (mm)  L100×W80×H10 L120×W80×H18

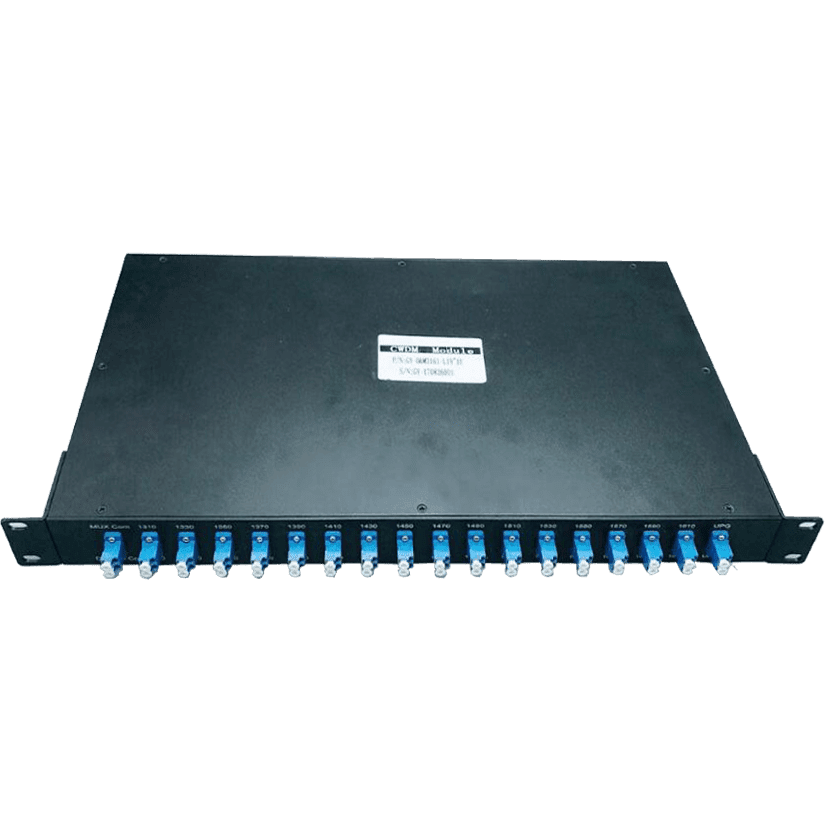

19″ 1U Rackmount
