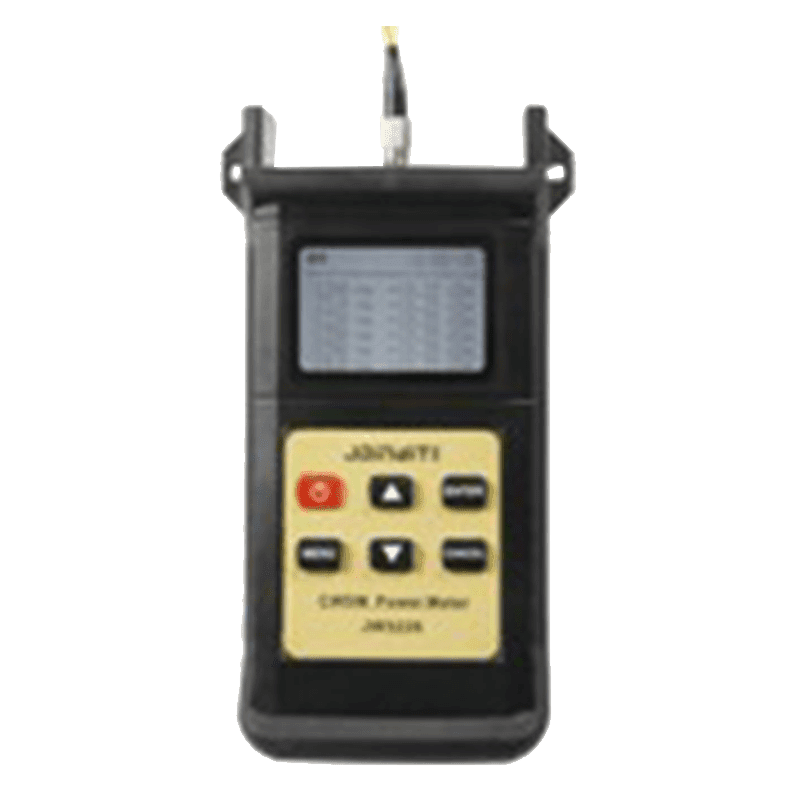

CWDM power meter

Description

Features:



◆Simultaneously test and show 18 wavelengths
◆ Friendly interface and easy operation
◆ Save and upload test results via USB port
◆1000 records
◆ Columnar graphics or list mode to show test data
◆Built-in clock and can edit test fiber number
◆Quick start operation, requiring no warm-up time
◆Light weight





Parameters:



Wavelength Range 1270 ~ 1610 nm
Number of Channels 18
Wavelength resolution 20nm
Measuring Wavelength (nm) 1270/1290/1310/1330/1350/1370/1390/1410/1430 1450/
1470/1490/1510/1530/1550/1570/1590/1610
Dynamic range +10 to -40dBm
Resolution 0.01dB
Optical interface FC/PCF(FC, LC, ST available)
Operating Temperature -10 to +60
Power supply Rechargeable Battery/AC power adapter
Time of Operating 10h
Dimension 40.5*21*25cm
Weight 2.6kg
