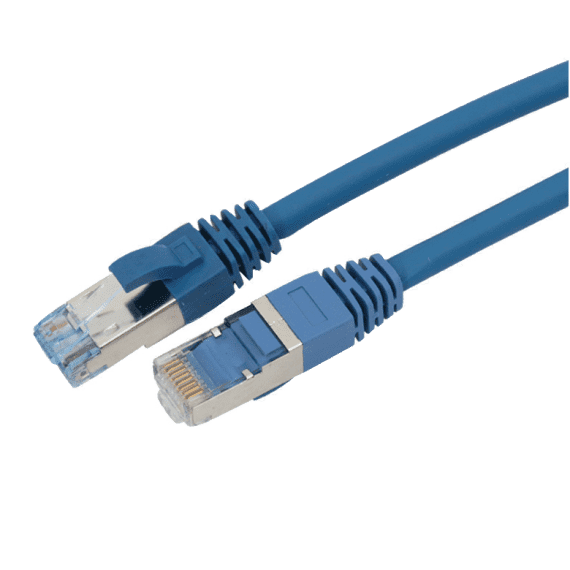

CAT6 FTP

Description

High Quality Patch Cord UL / ETL / DELTA / 4PPoE / CE Certified CAT.8/CAT.6A/CAT.6/CAT.5E are Available.
EXW has specialized in wholesale patch cords and other accessories for over 35 years. It is well known in the network accessories field and enjoys a good reputation in the world! Cat.8 & Cat.6A & Cat.6 & Cat.5e UTP/SSTP are all available. We take 100% responsibility for the products. As China patch cords manufacturers and patch cords factory, The biggest advantage of our patch cord is that we make 100% component test and provide the original test report to our customers. The patch cord is made with a 50u” plug and the mating cycles can be up to 1200 times.  Our patch cord is certified by UL, DELTA, ETL, GHMT, CE, and 4PPoE. We also have reliable quality systems, including ISO9001, ISO14001, and ISO45001 certificates. We make the ODM/OEM cases for the top 10 branded customers. Different lengths and different colors are all available. Our capacity for patch cords is over 1,000,000PCS per month. We have complete production lines with consistent quality control, quick turnaround time, and sufficient capacity.





Features:



◆EXW High quality Cat.6 U/UTP Patch Cord. Both ends with shielded 50U” gold thickness RJ45 male connectors. 100% component test to guarantee the quality.
◆ Follow ANSI/TIA-568.2-D & ISO/IEC 11801
◆ Cat.6 Patch Cord with 100% Component Test by DSX-8000 & DSX-5000
◆ Bare Copper with More Stable Performance
◆ 50U” Gold Plating RJ45 Plugs with Patented Design
◆ Various Colors & Molding Available
◆ Mating Cycles: Up to 1200 Times
◆ Suitable 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications
◆ Operation Temperature Range:-10~60 ℃
◆ UL / ETL / DELTA / 4PPoE / CE Certified & Comply with RoHS & REACH
◆Welcome OEM / ODM , EXW is Your Best Choice!





 Application:



◆Ethernet Networking
◆Computer Networking Project
◆ Audio & Data Transmission
◆Digital Networking
◆Broadband Networking Communication





Parameters:



Number of Conductors RJ45 8P8C
Product name CAT5/CAT6/CAT6a/Cat7 Patch Cable
Material PVC/LSOH/TPE/PUR
Color White/blue/black/red/green
Transmission Speed 1000mbps
Package PE Bag/Box
Widely used laptop, TV, PC, server, router, modem
Wire length 0.3 m / 0.5 m / 0.8 m / 1 m / 2 m / 3 m / 5 m / 8 m
Electrical performance Working voltage 12 V, 100% passed FLUKE LINK test



NEXT Requirement: 1dB margin compared to ANSI/TIA-568.2-D
Return loss Requirement: 1dB margin compared to ANSI/TIA-568.2-D
Current Rating: 1.5 A
Insulation Resistance: 100 MΩ min
Contact Resistance: 20 mΩ max
Dielectric Strength: 500 VAC (rms)
Voltage: 72 VDC max
Insertion Life: 750 mating cycles
Installation Temperature: 0/50℃
Operation & Storage Temperature: -20/60℃
Cable to Plug Tensile Strength: 20pound(min)
Pulling Force: 10N(max)
