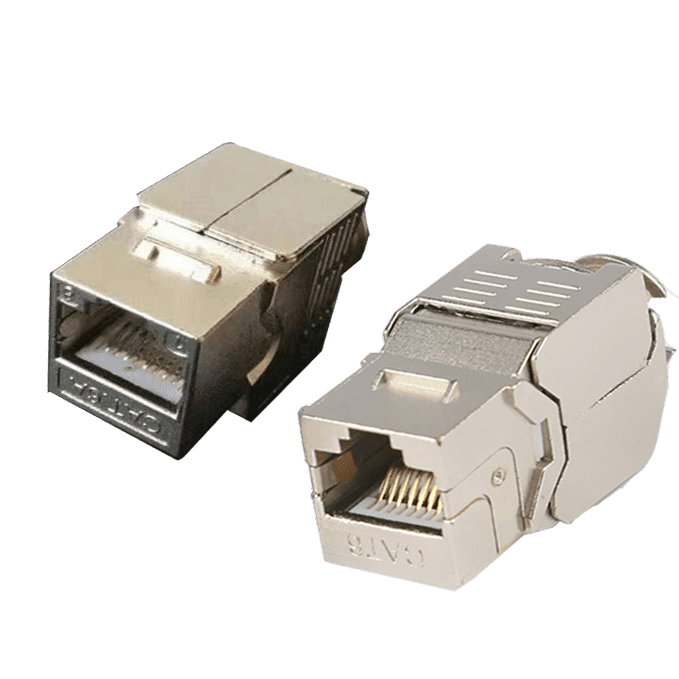

CAT6 FTP

Description

This series keystone jacks work together with high speed cables, cords and panels to provide performance beyond proposed Category 6 standards, a new feature of this series jack is a universal colored wiring label that eliminates the need for separate codes for T568A/B wiring scheme.





Features:



◆Available in Cat6A, T568A/B wiring, meet or exceed TIA/EIA Cat6A requirements
◆ Housing : high temperature thermoplastic
◆ Compact jack design, 8 positions and 8 conductors
◆ Contact : phosphor bronze , phosphor bronze with 6 to 50μ” gold plate
◆ Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
◆ Easy to be terminated, low attenuation loss and high return loss
◆ High reliability and superior performance
◆ Available in different colors





Parameters:



Description Parameter
Contact resistance(max) 100mΩ
Insulation resistance(min) 500MΩ
Return loss(dB) 5.3dB
