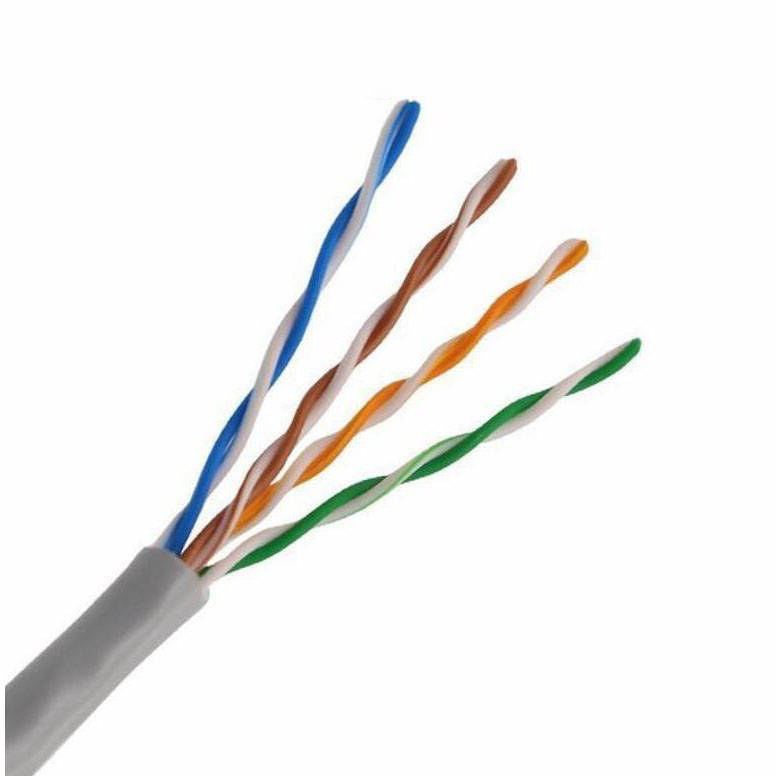

CAT5
CAT5
Description
Parameters:
| Construction |
| onductor: | 23 AWG Solid Bare Copper | |||||
| Pairs: | 4 Pairs | |||||
| Insulation: | 1.02 mm HDPE | |||||
| Insulation Colors: | Blue-White/Blue,Orange-White/Orange | |||||
| Green-White/Green,Brown-White/Brown | ||||||
| Filler: | Cross Filler | |||||
| Shield: | PET | |||||
| Drain Wire: | 0.40±0.005mm TC | |||||
| Overall Shield: | Al/PET Foil,Foil face out | |||||
| Rip Cord: | Cotton | |||||
| Out Jacket: | 7.6±0.2 mm PVC CM | |||||
Electrical Characteristics
| Impedance | 1 – 250MHz 100±15 Ohms | |||||
| Insulation Resistance | >5000MΩ*KM | |||||
| Dielectric strength | DC 2500V 2S | |||||
| Max.Conductor DC | 8.4 Ohms/100m | |||||
| Resistance 20ºC | ||||||
| Res. unbalance (%) | Max. 2.5 | |||||
| Pair to Ground | 330 pF/100m | |||||
| Capacitance Unbalance | ||||||
| Transfer Impendance | Max 10 mOhms/m @100Mhz | |||||
| Installation temp. | -30 – 50ºC | |||||
| Operation temp. | -20 – 75ºC | |||||
