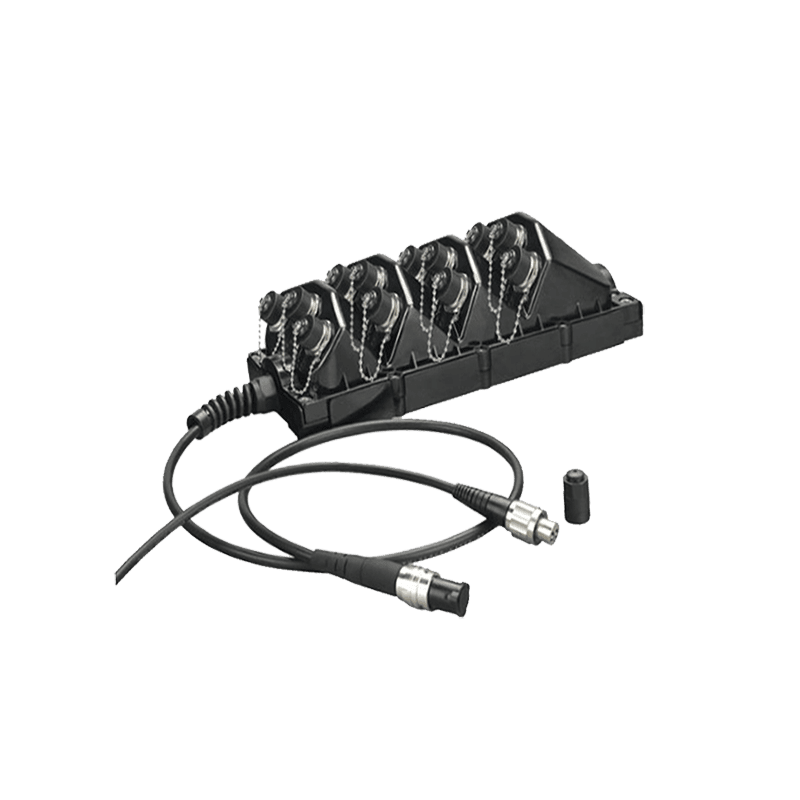

Base station waterproof terminal box-C

Description

The Multi Service Terminal incorporates hardened adapters and are fully OptiTap compatible. Allowing for rapid tower and FTTH deployments, the MSTs are fully IP68 rated to fully withstand the rigors of outdoor deployment in all environments. Each MST comes with easy deployment mount allowing wall mounting or for pole mounting.





Applications:



◆Fiber Optics
◆Satellite Communication
◆Wireless Backhaul
◆Cable Television
◆Navigation & Positioning
◆Military Installation
◆Port Security
◆Any EIA standard rack mount equipment
◆Cell Sites
◆General Industry





Features:



◆ Each box can be fully assembled to reduce the need for opening and opening the field in the field.
◆Hardened connectors are factory-terminated and environmentally sealed for use in optical
drop cable deployments.
◆ Plug-and-play adapter ports ensure rapid cable installment in the outside plant access
section of the network.
◆Multi-port Service Terminals incorporate hardened connector technology that is designed
to withstand the rugged outside plant environment.”
◆Factory terminated IP68 rated, high quality, high performance connectors.
◆Kind of mounting bracket allowing for a wide range of mount options.
◆Flexible choice of ports: 2, 4, 6, 8 terminals are available.





Parameters:



Port 2/4/6/8/12/16
IP Rate IP68
Adapter OptiTap SC, OptiTap LC Duplex, OptiTap MPO
Entrance Cable gland or OptiTap adapter
Feed Cable 1, 2, 4, 6, 8, 12 cores for options
Feed Cable Length Customized
Stub Type Stub Tail
Mounting Method Hand-hole, Pedestal, Pole, Strand, Aerial
6Core packing size 26.8*10.6*9.5CM
8Core packing size 33.9*10.6*9.5CM
12Core packing size 36.5*13.9*11.1CM
Comptible connector h-Connector/ODVA/ODC/PDLC/FLX…ETC
