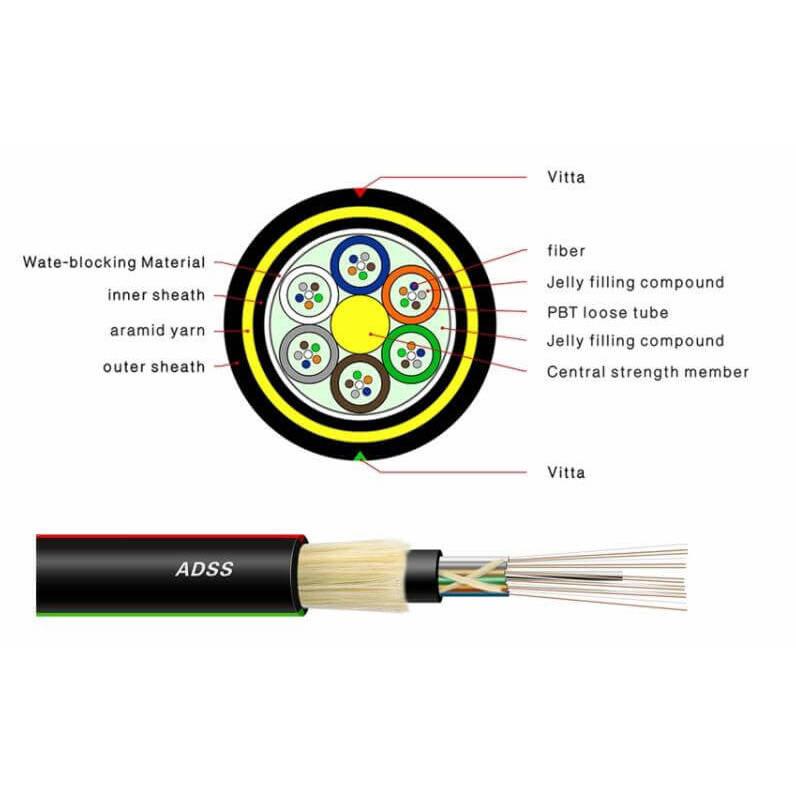

ADSS

Add to wishlist

Description

Applications:



◆The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines 10kv and 35kv, PE outer sheath is applied.
◆FOR power lines 110kV and 220KV, AT outer sheath is applied.
◆The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.





Features:



◆Can be installed without shutting off the power
◆Adopt AT performance, excellent dielectric performance
◆Light weight and small diameter reducing the load caused by ice and wind and the load on towers
◆Large span lengths and the largest span is over 1000m
◆Good performance of tensile strength and temperature
◆The design life span is 30 years





Cable Parameters:



Fiber count Outer diameter(mm) Weight(kg/km) NO.(tuber+fillers) Max fibers per tube Tension(N) Crash loading(N/100mm)
Short Term Long Term Short Term Long Term
2-36 12.1 125 8 6 3000 1000 3000 1000
36-72 13.9 135 12 6
74-96 16 170 12 8
98-120 16.6 210 12 10
122-144 18.2 246 12 12
144-216 18.3 250 12 18





Options:



◆Fiber Type: G.652 G.655 or G.657 single-mode fiber, A1a or A1b multi-mode fiber, or other types of fiber;
◆Jacket Material: Environmental low smoke zero halogen flame retardant polyolefin (LSZH), or other contracted material;
◆Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;
◆Cable Dimension: The nominal cable dimension, or other contracted dimension;
◆Delivery Length: 1km or 2km, or other contracted length;
