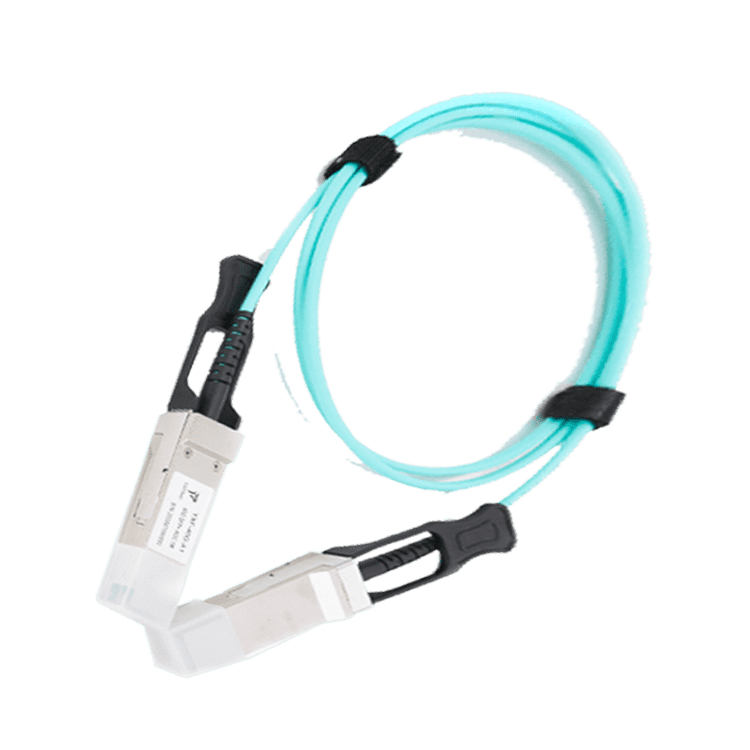

40G QSFP+ AOC

Add to wishlist

Description

Applications:



◆Hot Pluggable QSFP+ form factor.
◆Flexible choice of compatibility, distance and interface for all need
◆Low power consumption.
◆Tested on brand devices for performance, quality, and reliability.





Features:



◆40GBASE-SR4 40G Ethernet.
◆Breakout to 4 x 10GBASE-SR Ethernet.
◆Proprietary interconnections.





Parameters:



Model Rate Wavelength Transmission Distance Output Opt. Pwr. Rx. Sensitivity Laser Interface
OC-85A4-T1B 40Gb/s 850nm 100M -7~1dBm ≤-11.1dBm VCSEL MPO
OC-4LA4-10B 40Gb/s CWDM4 10KM -6~2.3dBm ≤-11.5dBm DFB LC
OC-4LA4-40B 40Gb/s CWDM4 40KM -2.7~4.5dBm ≤-21.2dBm DFB LC
OC-4LA4-80B 40Gb/s CWDM4 80KM 1~6dBm ≤-21.2dBm EML LC
