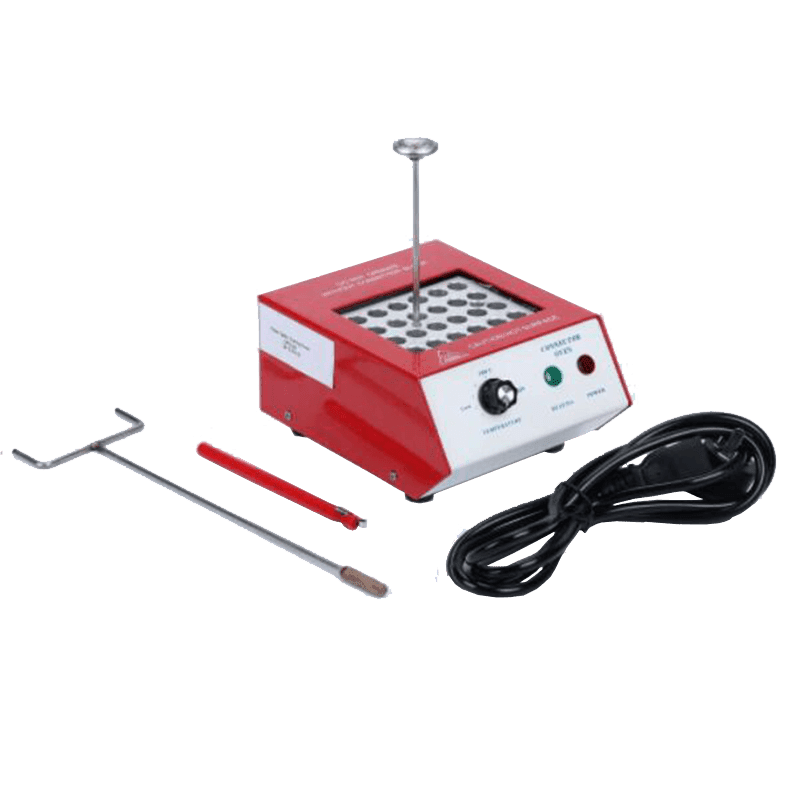

24 port optic epoxy curing oven

Description

A variety of connectors can be cured in the fiber curing oven. The fiber curing oven can be used in the house or field operation. The production of fiber curing oven reaches the command of curing oven process.



Technical parameters:



Curing Model  FC,SC,ST,LC
Power  AC220V ,200W
he maximum heating temperature  200℃
Normal curing temperature  80~120℃
Normal curing period  30~45min.
Curing connector numbers  1~24pcs
Weight  0.85kg
Dimension  170x140x190mm
