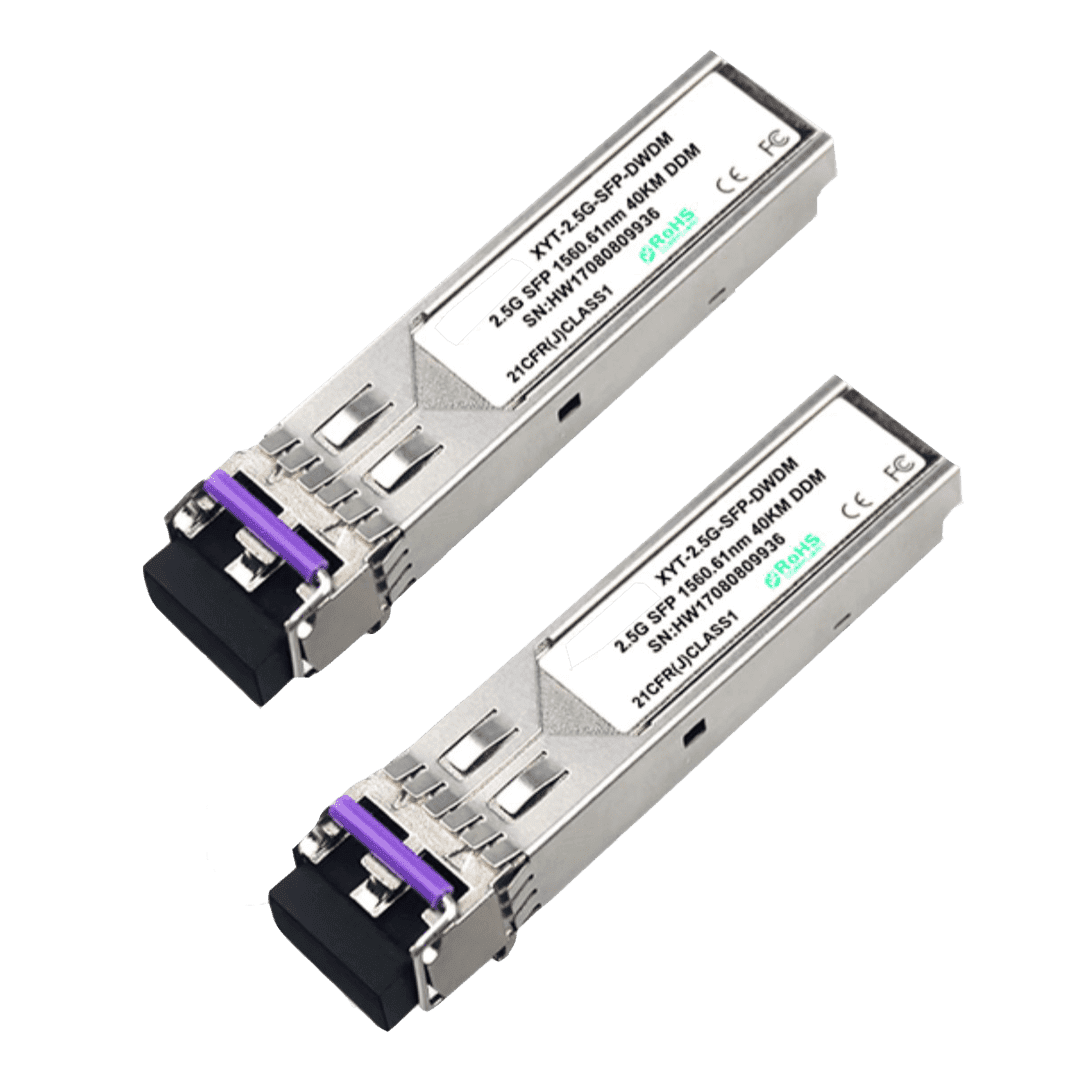

2.5G DWDM SFP transceiver

Description

Applications:



◆Gigabit Ethernet.

◆ Fiber Channel.

◆Switch to Switch Interface.

◆Other Optical Links



Features:



◆ With DDM function

◆ IEEE 802.3 Ethernet compliant

◆ SFP+ MSA protocol compliant

◆ Conform to SDH / SONET transmission standard





Parameters:



155Mb/s SFP Dual Fiber Optical Transceiver

Model Rate Wavelength Transmission Distance Output Opt. Pwr. Rx. Sensitivity Laser Interface
OC-8503-M5B 155Mb/s 850nm 550M -8~-3dBm -24dBm VCSEL LC
OC-1303-10B 155Mb/s 1310nm 10KM -12~-8dBm -32dBm FP LC
OC-1303-40B 155Mb/s 1310nm 40KM -8~-3dBm -32dBm FP LC
OC-1503-80B 155Mb/s 1550nm 80KM -5~0dBm -32dBm DFB LC
OCC-**03-80B 155Mb/s **nm 80KM -5~0dBm -32dBm DFB LC



155Mb/s SFP BIDI Single Mode Optical Transceiver

Model Rate Wavelength Transmission Distance Output Opt. Pwr. Rx. Sensitivity Laser Interface
OC-3503-03B 155Mb/s Tx1310/Rx1550nm 3KM -12~-8dBm -28dBm FP LC/SC
OC-5303-03B 155Mb/s Tx1550/Rx1310nm 3KM -12~-8dBm -28dBm FP LC/SC
OC-3503-10B 155Mb/s Tx1310/Rx1550nm 10KM -12~-8dBm -28dBm FP LC/SC
OC-5303-10B 155Mb/s Tx1550/Rx1310nm 10KM -12~-8dBm -28dBm FP LC/SC
OC-3503-40B 155Mb/s Tx1310/Rx1550nm 40KM -8~-3dBm -32dBm FP LC/SC
OC-5303-40B 155Mb/s Tx1550/Rx1310nm 40KM -8~-3dBm -32dBm DFB LC/SC
OC-4503-80B 155Mb/s Tx1490/Rx1550nm 80KM -5~0dBm -33dBm DFB LC/SC
OC-5403-80B 155Mb/s Tx1550/Rx1490nm 80KM -5~0dBm -33dBm DFB LC/SC
OC-4503-C0B 155Mb/s Tx1490/Rx1550nm 120KM 0~3dBm -34dBm DFB LC/SC
OC-5403-C0B 155Mb/s Tx1550/Rx1490nm 120KM 0~3dBm -34dBm DFB LC/SC



1.25Gb/s SFP Dual Fiber Optical Transceiver

Model Rate Wavelength Transmission Distance Output Opt. Pwr. Rx. Sensitivity Laser Interface
OC-8512-M5B 1.25Gb/s 850 nm 550M -8~-3dBm -17dBm VCSEL LC
OC-1312-10B 1.25Gb/s 1310nm 10KM -9~-3dBm -20dBm FP LC
OC-1312-40B 1.25Gb/s 1310nm 40KM -5~0dBm -24dBm DFB LC
OC-1512-40B 1.25Gb/s 1550nm 40KM -5~0dBm -24dBm DFB LC
OC-1512-80B 1.25Gb/s 1550nm 80KM 0~5dBm -26dBm DFB LC
OC-1512-C0B 1.25Gb/s 1550nm 120KM 0~5dBm -31dBm DFB LC
OCC-**12-80B 1.25Gb/s **nm 80KM 0~5dBm -26dBm DFB LC
OCD-**12-C0B 1.25Gb/s C17~C61 120KM 0~5dBm -31dBm DFB LC



1.25Gb/s SFP BIDI Single Mode Optical Transceiver

Model Rate Wavelength Transmission Distance Output Opt. Pwr. Rx. Sensitivity Laser Interface
OC-3512-03B 1.25Gb/s Tx1310/Rx1550nm 3KM -9~-3dBm -20dBm FP LC/SC
OC-5312-03B 1.25Gb/s Tx1550/Rx1310nm 3KM -9~-3dBm -20dBm FP LC/SC
OC-3512-10B 1.25Gb/s Tx1310/Rx1550nm 10KM -9~-3dBm -20dBm FP LC/SC
OC-5312-10B 1.25Gb/s Tx1550/Rx1310nm 10KM -9~-3dBm -20dBm DFB LC/SC
OC-3512-40B 1.25Gb/s Tx1310/Rx1550nm 40KM -5~0dBm -24dBm DFB LC/SC
OC-5312-40B 1.25Gb/s Tx1550/Rx1310nm 40KM -5~0dBm -24dBm DFB LC/SC
OC-4512-80B 1.25Gb/s Tx1490/Rx1550nm 80KM 0~5dBm -26dBm DFB LC/SC
OC-5412-80B 1.25Gb/s Tx1550/Rx1490nm 80KM 0~5dBm -26dBm DFB LC/SC
OC-4512-C0B 1.25Gb/s Tx1490/Rx1550nm 120KM 0~5dBm -31dBm DFB LC/SC
OC-5412-C0B 1.25Gb/s Tx1550/Rx1490nm 120KM 0~5dBm -31dBm DFB LC/SC



2.5Gb/s SFP Dual Fiber Optical Transceiver

Model Rate Wavelength Transmission Distance Output Opt. Pwr. Rx. Sensitivity Laser Interface
OC-8524-M5B 2.5Gb/s 850nm 300M -8~-3dBm -18dBm VCSEL LC
OC-1324-10B 2.5Gb/s 1310nm 10KM -5~0dBm -19dBm DFB LC
OC-1324-40B 2.5Gb/s 1310nm 40KM -2~3dBm -19dBm DFB LC
OC-1524-80B 2.5Gb/s 1550nm 80KM 0~5dBm -28dBm DFB LC
OC-1524-C0B 2.5Gb/s 1550nm 120KM 1~6dBm -30dBm DFB LC
OCC-**24-40B 2.5Gb/s **nm 40KM -2~3dBm -19dBm DFB LC
OCC-**24-80B 2.5Gb/s **nm 80KM 0~5dBm -28dBm DFB LC
OCD-**24-80B 2.5Gb/s C17~C61 80KM 0~5dBm -28dBm DFB LC
OCD-**24-C0B 2.5Gb/s C17~C61 120KM 0~5dBm -30dBm DFB LC



2.5Gb/s SFP BIDI Single Mode Optical Transceiver

Model Rate Wavelength Transmission Distance Output Opt. Pwr. Rx. Sensitivity Laser Interface
OC-3524-02B 2.5Gb/s Tx1310/Rx1550nm 2KM -9~-3dBm -18dBm FP LC/SC
OC-5324-02B 2.5Gb/s Tx1550/Rx1310nm 2KM -9~-3dBm -18dBm FP LC/SC
OC-3524-10B 2.5Gb/s Tx1310/Rx1550nm 10KM -5~0dBm -19dBm DFB LC/SC
OC-5324-10B 2.5Gb/s Tx1550/Rx1310nm 10KM -5~0dBm -19dBm DFB LC/SC
OC-3524-40B 2.5Gb/s Tx1310/Rx1550nm 40KM -2~3dBm -19dBm DFB LC/SC
OC-5324-40B 2.5Gb/s Tx1550/Rx1310nm 40KM -2~3dBm -19dBm DFB LC/SC
OC-4524-80B 2.5Gb/s Tx1490/Rx1550nm 80KM 0~5dBm -28dBm DFB LC/SC
OC-5424-80B 2.5Gb/s Tx1550/Rx1490nm 80KM 0~5dBm -28dBm DFB LC/SC
OC-4524-C0B 2.5Gb/s Tx1490/Rx1550nm 120KM 1~6dBm -30dBm DFB LC/SC
OC-5424-C0B 2.5Gb/s Tx1550/Rx1490nm 120KM 1~6dBm -30dBm DFB LC/SC
