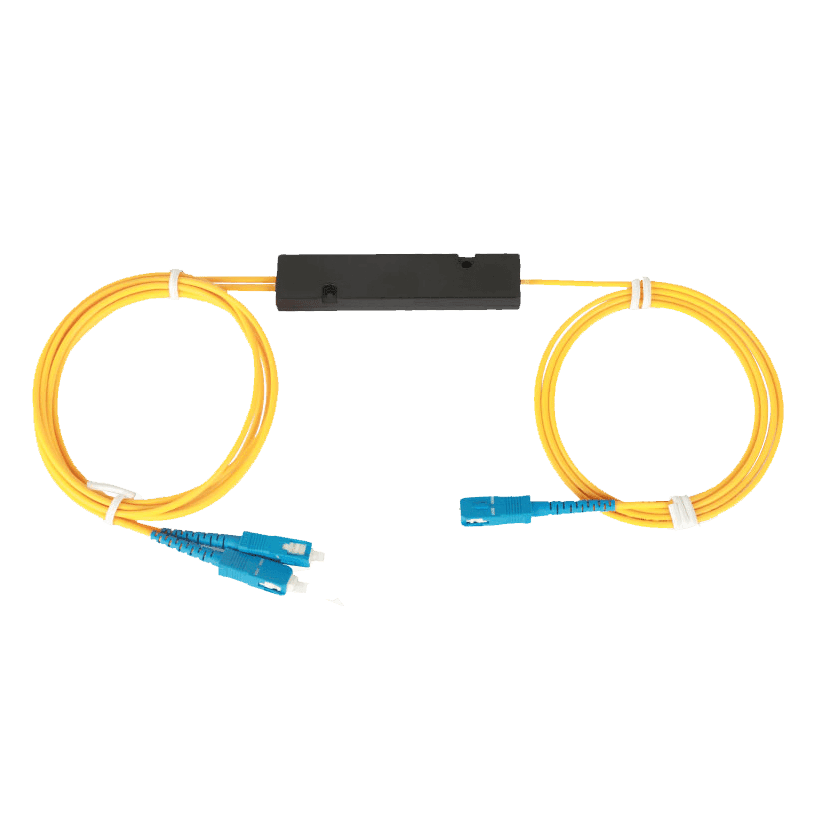

1X2 FBT box type

Description

Applications:



◆ Optical fiber communication systems engineering.
◆ Fiber optic data communication network.
◆ Fiber CATV, FTTH engineering.
◆Other optical technology tests.



Features:



◆Low Insertion loss
◆Low PDL
◆Compact Design
◆Good channel-to-channel uniformity
◆Wide Operating Wavelength:From 1260nm to 1650nm
◆High credibility and stability
◆Wide Operating Temperature:From -40℃ to 85℃
◆High Reliability and Stability



Parameters:



Specifications 1×N PLC Splitter

Parameters 1×2 1×4 1×8 1×16 1×32 1×64 1×128
Operating Wavelength(nm) 1260~1650
Fiber Type G657A1 or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0 23.8/24.2
Loss Uniformit(dB) 0.4 0.6 0.8 1.2 1.5 2 2.5
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35 0.4
Return Loss(dB)(P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50 55/50
Directivity(dB) 55 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5 0.5
Temperature Stability (-40~85℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5 0.5
Operating Temperature(℃) -40~+85
Storage Temperature(℃) -40~+85
Device Dimension(mm) 40×4×4 40×4×4 40×4×4 50×7×4 50×7×4 60×12×4 N/A
Module Dimension(mm) 100×80×10 120×80×18 141×115×18
Mini-Module Dimension(mm) 50×7×4 60×12×4 80×20×6 100×40×6 N/A



Specifications 2×N PLC Splitter

Parameters 2×2 2×4 2×8 2×16 2×32 2×64 2×128
Operating Wavelengthnm 1260~1650
Fiber Type G657A1 or customer specified
Insertion Loss (dB) P/S Grade 3.9/4/2 7.3/7.6 10.5/11 14.4/14.6 17.4/17.9 21.0/21.5 24.5/25.0
Loss UniformitydB 0.6 1.0 1.2 1.5 1.8 2.2 2.5
Polarization Dependent LossdB 0.2 0.2 0.2 0.3 0.3 0.3 0.4
Return Loss(dB)(P/S Grade) 55 55 55 55 55 55 55
DirectivitydB 55 55 55 55 55 55 55
Wavelength Dependent LossdB 0.3 0.4 0.5 0.5 0.5 0.5 0.5
Fiber Length (m) 1.5(±0.1)or customer specified
Temperature Stability-40~85℃)(dB 0.5
Operating Temperature() -20~+75
Storage Temperature() -40~+85
Maximum Power Handling (mW) 500



ABS type:

Item 1×4 1×8 1×16 1×32 1×64 2×2 2×4 2×8 2×16
(L*W*H)(mm) 100*80*10 100*80*10? 120*80*18? 140*115*18 100*80*10 120*80*18 140*115*18
120*80*18 140*115*18



Bare fiber type:

Item 1×2 1×4 1×8 1×16 1×32 1×64 2×2 2×4 2×8 2×16 2×32
(L*W*H)(mm) 40*4*4 50*7*4 60*12*4 60*7*4 70*7*4 70*7*4



Mini type:

Item 1×2 1×4 1×8 1×16 1×32 1×64 2×2 2×4 2×8 2×16 2×32
(L*W*H)(mm) 60*7*4 60*12*4 80*20*6 100*40*6 60*7*4 80*12*4 100*20*6
