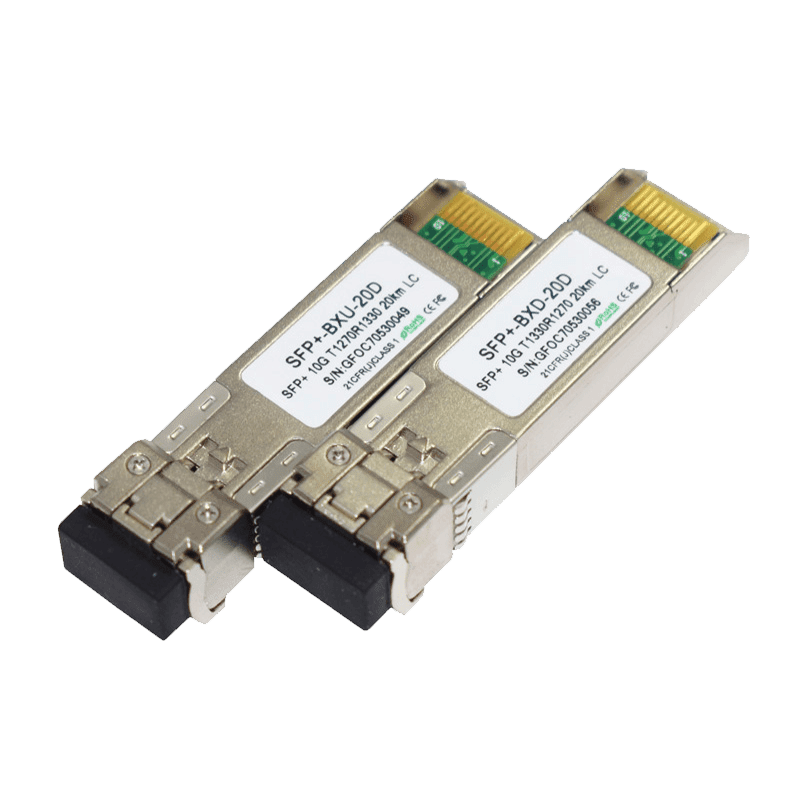

10G Bidi SFP+ transceiver

Add to wishlist

Description

Applications:



◆Man / Lan
◆ Data storage and communication industry switches / routers
◆Enterprise Network SAN
◆  High performance computing cluster
◆ High performance computing cluster
◆Infiniband QDR and base station / BBU / RRU



Features:



◆   Hot-pluggable SFP+ footprint
◆  With DDM function
◆ IEEE 802.3 Ethernet compliant
◆ SFP+ MSA protocol compliant
◆ Conform to SDH / SONET transmission standard



Parameters:



10Gb/s Dual Fiber Optical Transceiver

Model Rate Wavelength Transmission Distance Output Opt. Pwr. Rx. Sensitivity Laser Interface
OC-8506-M3B 10Gb/s 850nm 300M -5~-1dBm ≤-10dBm VCSEL LC
OC-1306-02B 10Gb/s 1310nm 2KM -6~-1dBm ≤-14.5dBm FP LC
OC-1306-10B 10Gb/s 1310nm 10KM -6~-1dBm ≤-14.5dBm DFB LC
OC-1306-40B 10Gb/s 1310nm 40KM -1~4dBm ≤-15.8dBm DFB LC
OC-1506-40B 10Gb/s 1550nm 40KM -1~4dBm ≤-15.8dBm EML LC
OC-1506-80B 10Gb/s 1550nm 80KM 0~5dBm ≤-23dBm EML LC
OCC-**06-10B 10Gb/s 1270nm~1610nm 10KM -5~-1dBm ≤-14.5dBm DFB LC
OCC-**06-40B 10Gb/s 1470nm~1330nm 40KM -1~3dBm ≤-15.8dBm DFB LC
OCC-**06-40B 10Gb/s 1470nm~1610nm 40KM -1~3dBm ≤-15.8dBm EML LC
OCC-**06-80B 10Gb/s 1470nm~1610nm 80KM 0~4dBm ≤-23dBm EML LC
OCD-**06-40B 10Gb/s C17~C61 40KM -1~3dBm ≤-15.8dBm EML LC
OCD-**06-80B 10Gb/s C17~C61 80KM 0~4dBm ≤-23dBm EML LC



10Gb/s BIDI Single Mode Optical Transceiver

Model Rate Wavelength Transmission Distance Output Opt. Pwr. Rx. Sensitivity Laser Interface
OCB-2306-10B 10Gb/s Tx1270/Rx1330nm 10KM -5~-1dBm ≤-14.5dBm DFB LC
OCB-3206-10B 10Gb/s Tx1330/Rx1270nm 10KM -5~-1dBm ≤-14.5dBm DFB LC
OCB-2306-40B 10Gb/s Tx1270/Rx1330nm 40KM 0~5dBm ≤-15.8dBm DFB LC
OCB-3206-40B 10Gb/s Tx1330/Rx1270nm 40KM 0~5dBm ≤-15.8dBm DFB LC
OCB-2306-60B 10Gb/s Tx1270/Rx1330nm 60KM 0~5dBm ≤-20dBm DFB LC
OCB-3206-60B 10Gb/s Tx1330/Rx1270nm 60KM 0~5dBm ≤-20dBm DFB LC
OCB-4506-80B 10Gb/s Tx1490/Rx1550nm 80KM 0~5dBm ≤-23dBm EML LC
OCB-5406-80B 10Gb/s Tx1550/Rx1490nm 80KM 0~5dBm ≤-23dBm EML LC
