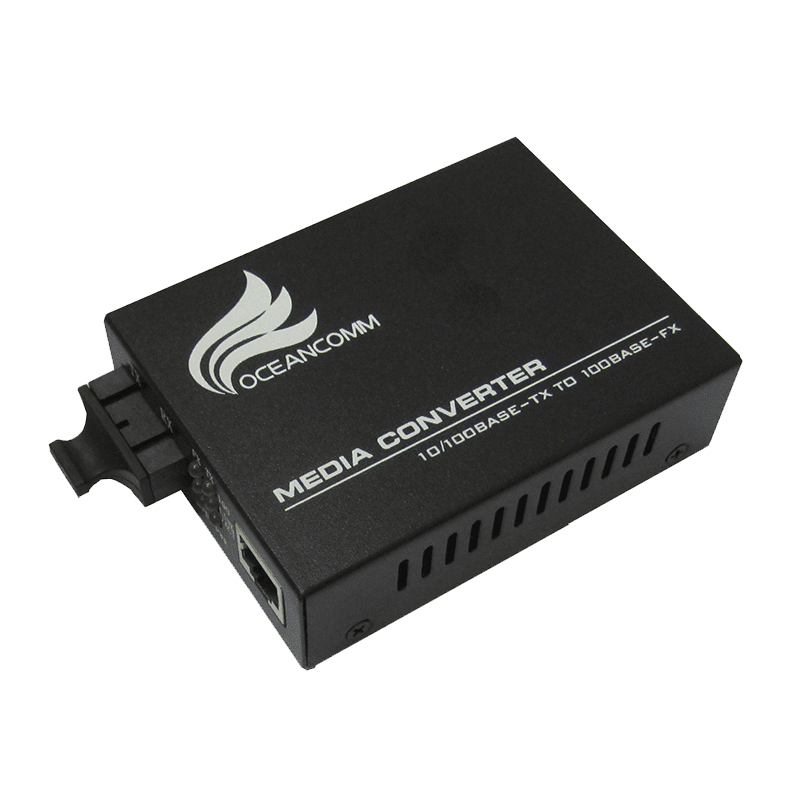

100M dual fiber+1RJ45 fiber media converter

Description

10/100/1000Mbps adaptive Gigabit Ethernet Fiber Media Converter uses the switching technology to conduct media conversion, which meets the standards of IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab. FC1000A supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T and 1000Base-SX/LX. FC1000A can conduct mutual conversion between 10Base-T/100Base-TX/1000Base-T twisted pair electrical signal and 1000Base-SX/LX optical signals. It extends the transmission distance of a network from 100m over copper wires to 120Km. This fiber converter supports transmission in dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fibers.



Features:



◆Supporting mutual signal conversion between 10Base-T/100Base-TX/1000Base-T and 1000Base-SX/LX;
◆Supporting full-duplex and half-duplex transmission modes and capable of automatic negotiation;
◆Supporting automatic cross of twisted pair ports, for the convenience of system debugging and installation;
◆Dual fiber device support to detect the optic signal
◆Supporting the transmission of 10KBytes extra-long packets over VLAN;
◆Supporting Quality of Service (QoS) and ensuring transmission of VoIP packets;
◆Supporting Spanning Tree Protocol (STP) to form a redundant network;
◆Supporting multiple types of fiber ports such as dual-fiber multi-mode,dual-fiber single-mode and single-fiber single-mode, to satisfy the extended requirements of users.







Parameters:



10/100/1000M single fiber

Connector type SC SC SC SC
Fiber type.3 Single-mode Single-mode Single-mode Single-mode
Wavelength 1310/1550nm 1310/1550nm 1310/1550nm 1490/1550nm
Max Distance 20Km 40Km 60Km 80Km
Min TX PWR -10.0dBm -4.0/-8dBm 0/-5.0dBm -1dBm
Max TX PWR -4.0dBm 0dBm 3/0dBm 3dBm
Sensitivity < -22dBm < -25dBm < -25dBm < -25dBm
Link Budget 12.0dBm 20/17dBm 25/20dBm 24.0dBm



10/100/1000M Dual fiber

Connector type SC SC SC SC SC
Fiber type Multi-mode Single-mode Single-mode Single-mode Single-mode
Wavelength 850nm 1310nm 1310nm 1550nm 1550nm
Max Distance 50µm: 550m 20Km 40Km 60Km 80Km
62.5µm: 224m
Min TX PWR -11.0dBm -9.0dBm -4.0dBm -8.0dBm -3.0dBm
Max TX PWR -6.0dBm -5.0dBm 0dBm 0dBm 0dBm
Sensitivity < -18dBm < -21dBm < -24dBm < -25dBm < -25dBm
Link Budget 7.0dBm 12.0dBm 20.0dBm 17.0dBm 22.0dBm
