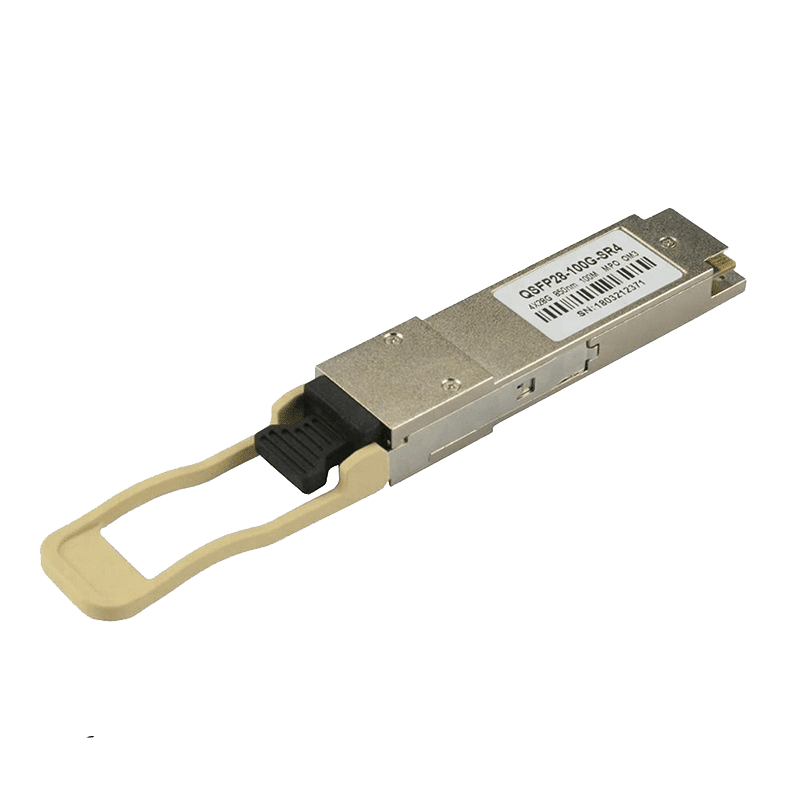

100G QSFP28 transceiver

Add to wishlist

Description

Applications:



◆100GBASE-LR4 100G Ethernet.
◆Date center.





Features:



◆Hot Pluggable QSFP28 form factor.
◆High stability and compatibility.
◆Low power consumption.





Parameters:



Model Rate Wavelength Transmission Distance Output Opt. Pwr. Rx. Sensitivity Laser Interface
OCQ28-85R4-M1B 100Gb/s 850nm 100M -8~2dBm ≤-10.3dBm VCSEL MPO
OCQ28-4LR4-10B 100Gb/s LWDM4 10KM -4~4dBm ≤-10.6dBm DFB LC
OCQ28-4LR4-40B 100Gb/s LWDM4 40KM -2~4dBm ≤-21dBm EML LC
OCQ28-4LR4-80B 100Gb/s LWDM4 80KM 2~6dBm <-28dBm EML LC
