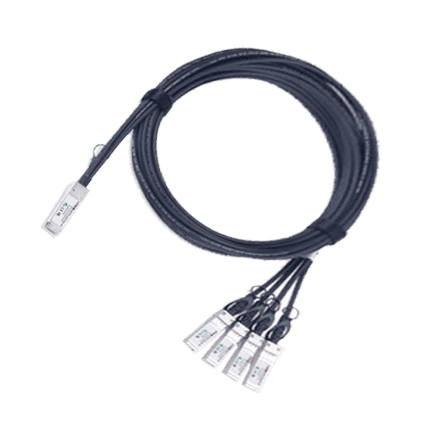

100G DAC

Description

Applications:



◆Switches, servers and routers.
◆Storage area networks.
◆Data Center networks.
◆High performance computing.
◆Telecommunication and wireless infrastructure.





Features:



◆Wire AWG: AWG30, AWG24.
◆Compatible with IEEE 802.3bj and IEEE 802.3cd.
◆Optimized construction to minimize insertion loss and cross talk.
◆Straight and break out assembly configurations available.
◆Customized cable braid termination limits EMI radiation.





Parameters:



Model Rate Interface Sort Cable Diameter Transmission Distance
OCDA-PP-**MB** 10Gb/s SFP+ to SFP+ Passive **AWG (24/30 Optional) 24AWG<10m,30AWG<3m
OCAC-PP-**MB** 10Gb/s SFP+ to SFP+ Active **AWG (24/28/30 Optional) 24AWG<15m,28AWG<10m, 30AWG<3m
OCDA-S28-**MB** 25Gb/s SFP28 to SFP28 Passive **AWG (26/28/30 Optional) 26AWG<5m, 28AWG<3m, 30AWG<3m
OCDA-QQ-**MB** 40Gb/s QSFP+ to QSFP+ Passive **AWG (26/30 Optional) 26AWG<7m, 30AWG<3m
OCDA-QP-**MB** 40Gb/s QSFP+ to SFP+ Passive **AWG (26/30 Optional) 26AWG<7m, 30AWG<3m
OCDA-Q28-**MB** 100Gb/s QSFP28 to QSFP28 Passive **AWG (26/30 Optional) 26AWG<5m, 30AWG<3m
OCDA-QS28-**MB** 100Gb/s SFP28 to SFP28 Passive **AWG (26/30 Optional) 26AWG<5m, 30AWG<3m
OCDA-QQ56-**MB** 200Gb/s QSFP56 to QSFP56 Passive **AWG(26/30 Optional) 26AWG<3m,30AWG<1.5m
OCDA-QQ56-**MB** 200Gb/s QSFP56 to 2*QSFP56 Passive **AWG(26/30 Optional) 26AWG<3m, 30AWG<1.5m
OCDA-QDD-**MB** 400Gb/s QSFP-DD to QSFP-DD Passive **AWG (28/30 Opt.) 28AWG<3m, 30AWG<1.5m
OCDA-QD856-**MB** 400Gb/s QSFP-DD to  8xQSFP56 Passive **AWG (28/30 Opt.) 28AWG<3m, 30AWG<1.5m
OCDA-QD456-**MB** 400Gb/s QSFP-DD to 4xQSFP56 Passive **AWG (28/30 Opt.) 28AWG<3m, 30AWG<1.5m
OCDA-QD2D-**MB** 400Gb/s QSFP-DD to 2xQSFP-DD Passive **AWG (28/30 Opt.) 28AWG<3m, 30AWG<1.5m
